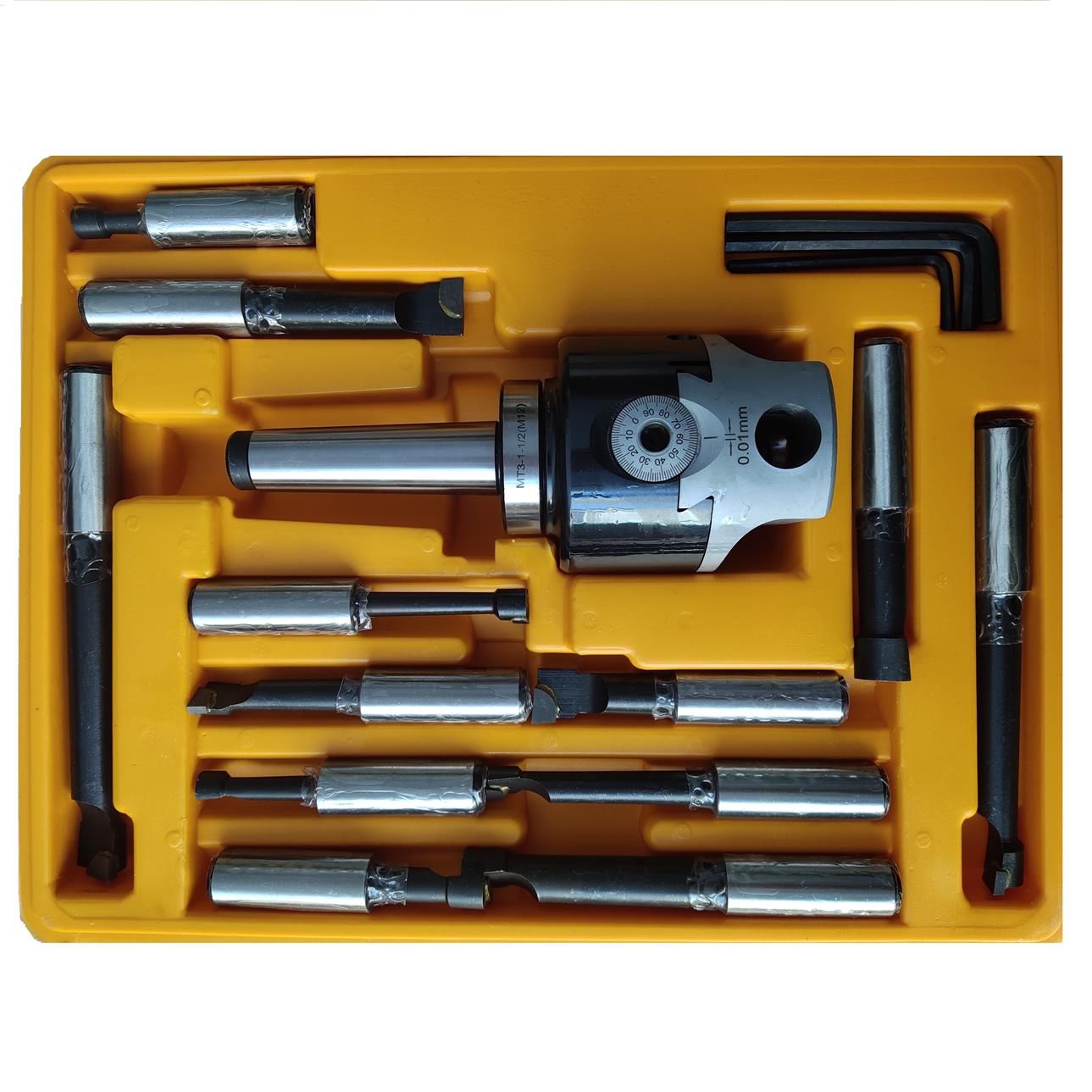

F1 type boring head set

The product is a coordinate boring machine, horizontal boring machine, ordinary boring and milling machine.

The main accessories of boring and milling CNC machine tools can be used for boring, boring outer circle, boring end face, boring stepped hole, boring inner hole end face, cutting inner hole and ring groove on outer circle, etc.

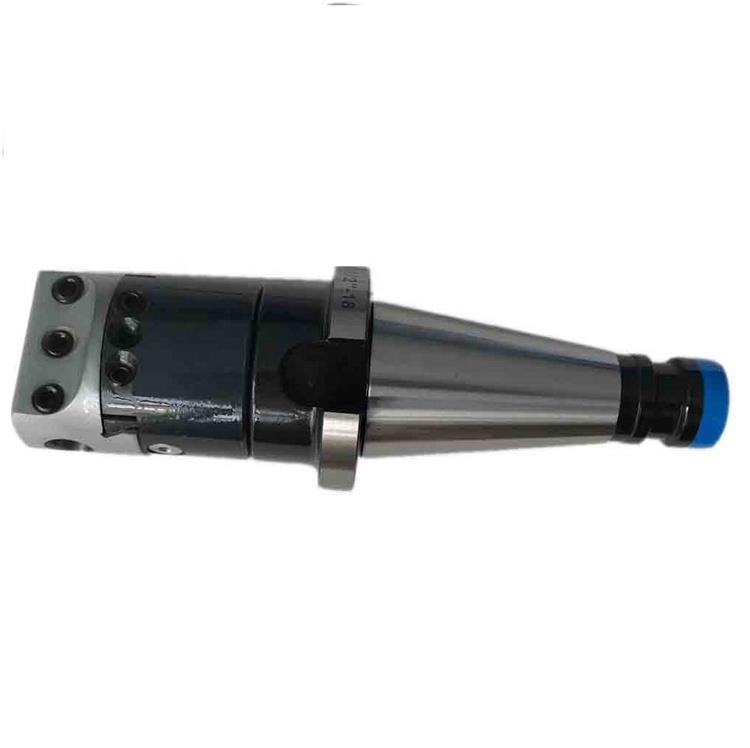

image.pngF1 BORING SHANK:

Model No.Shank No.Connect Thread
F1-BT BT301-1/2"-18UNC
BT40
BT50
F1-NTNT30
NT40
NT50
F1-R8R8
F1-MSMS2W
MS2
MS3W
MS3
MS4W
MS4
MS5W
MS5



Among the Model No, of F1-MS , the MS and  MSW repectively refer to MS taper with tang and MS taper with draw bar
