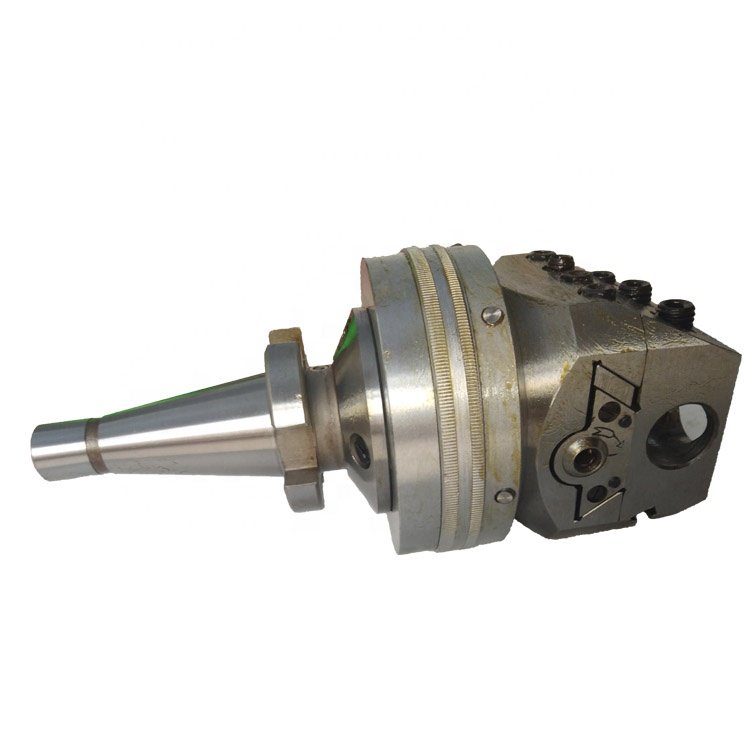

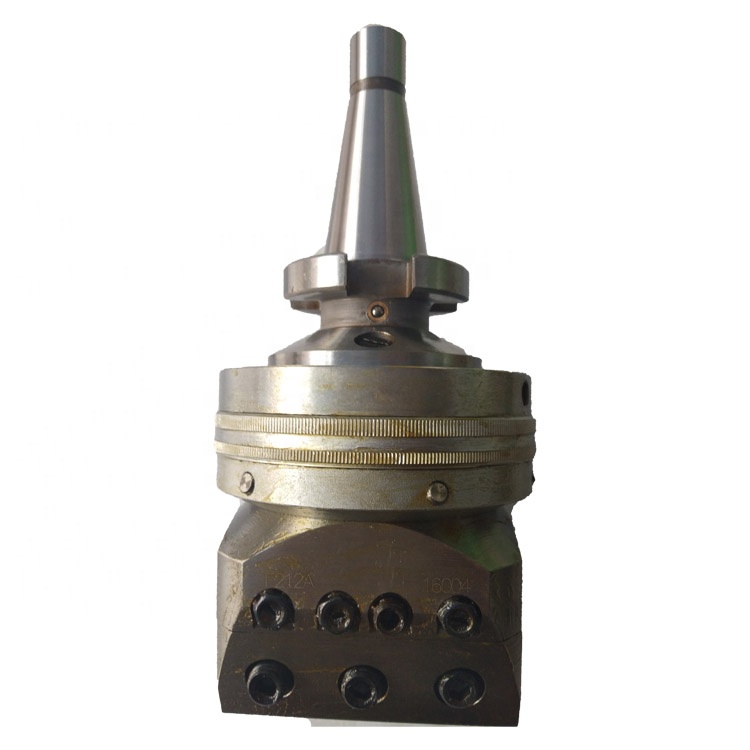

universal automatic self feeding facing and boring head

It is a major accessory of the machine tools such as jig boring machine,horizontal boring machine,milling machine,cnc machine etc. It can carry out such operations as facing,outside inside diameter boring,boring step holes,innter and outside groove cutting etc
It has the mechanism of manual fine feed,rapid adjustment,various velocities for radial automatic feed and overload protection. The shank which is fixed to the spindle of machine can be selected in accordance with the customer's requirement. With high precision and easy handling,it is reliable and safe.



F212A(Z11150)F213AF214A
Max facing and boring dia(mm)150350450
Max stroke of slide(mm)±15±25±50
Fine feed per graduation(mm)0.005
manual feed per revolution(mm)23
self-acting feed per revolution(mm) 0.02,0.04,0.06,0.08,0.10,0.120.03,0.06,0.09,0.12,0.15,0.18
Dia of tool post holes in slide(mm) 1822

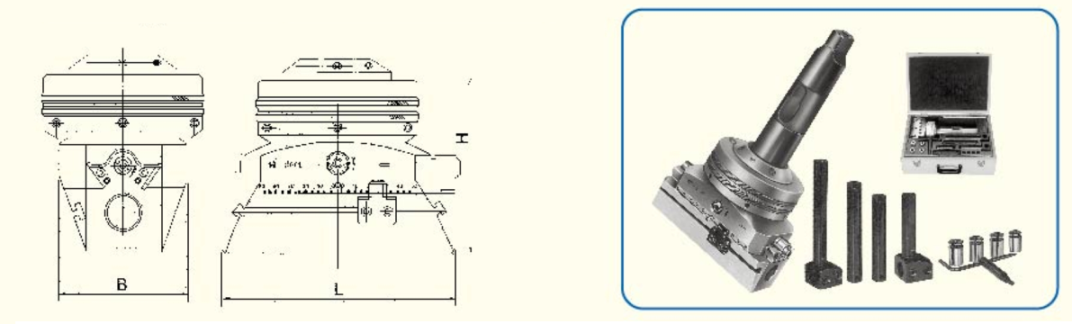

Max dia of slide(mm) (D)90120168
Height of head without shank(mm) (H)87.5118
Weight of head without shank(kg)2.96.17.8
The length of sliding block(mm) (L)75105160
The width of slading block(mm) (B)709090
ID of bushing(mm)4,8,128,10,12,14

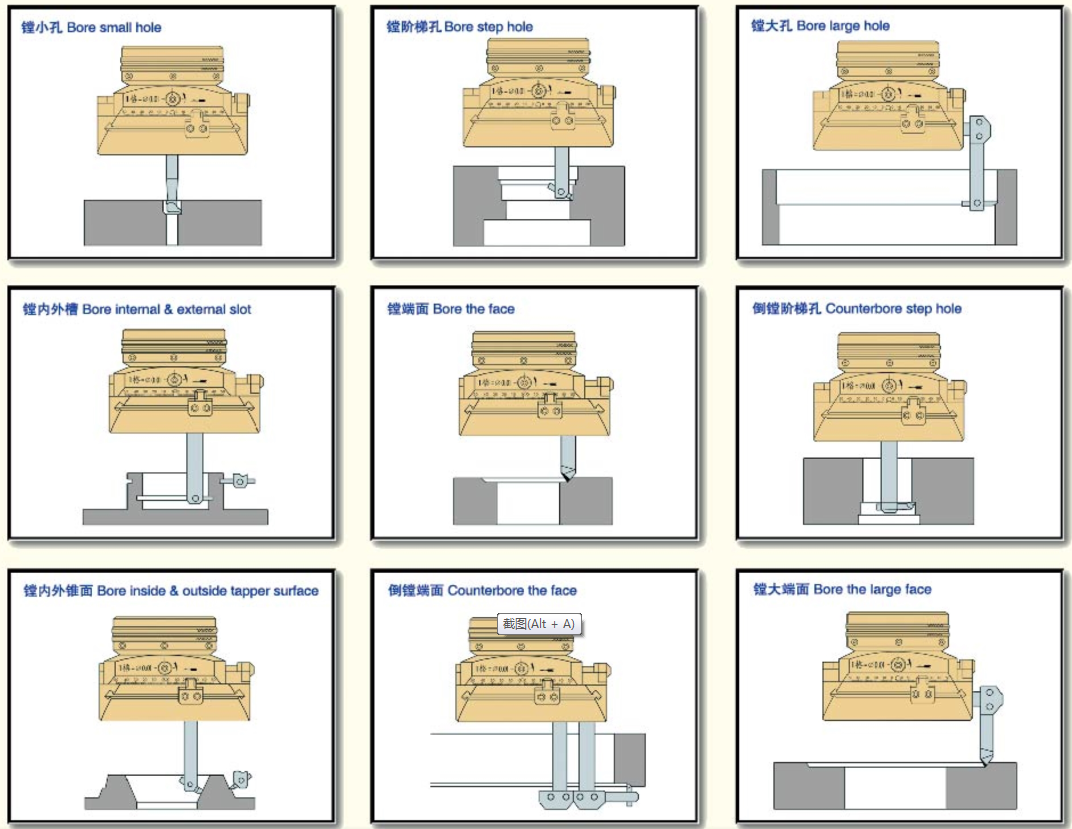

TYPICAL APPLICATION:

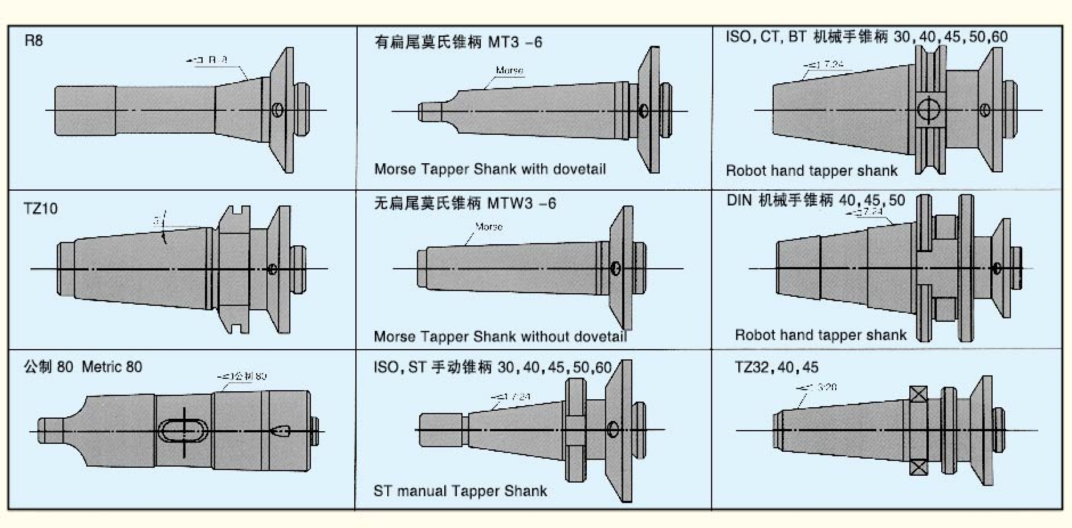

TYPE OF TAPER SHANK:
