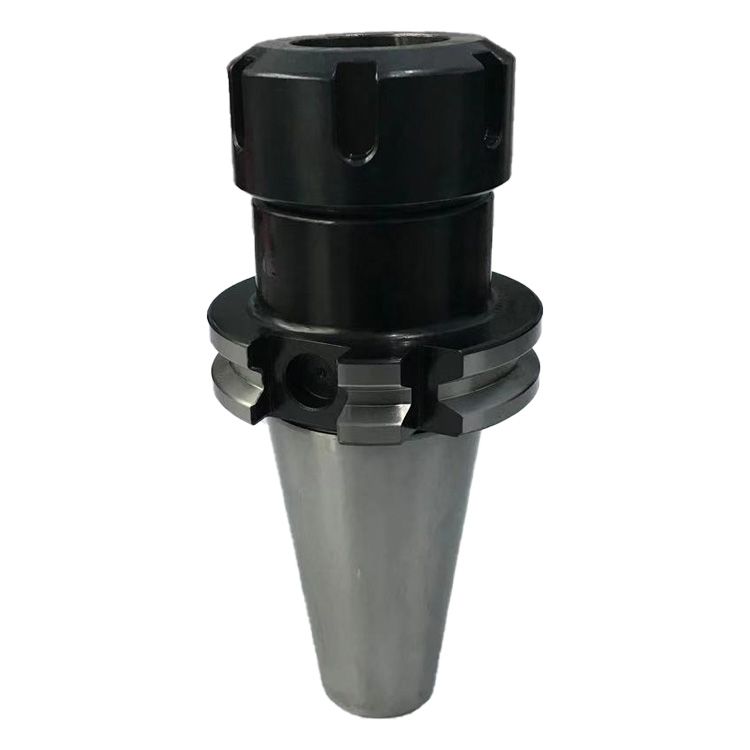

DIN69871 ER COLLET CHUCK

1. The holder is made of imported high strength material and has high wear resistance after special treatment.
2.Special tool handle for CNC machine's inner hole with cutter
3.When order please indicate the hilt the concrete form.If needs in the center cold and the flange water leakage hilt, please mark AD/B.
4.According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm
5.First put the collet into the nut, then the drill bit into collet, and finally tighten the nut to lock the holder

Productproduct

Product Introduce

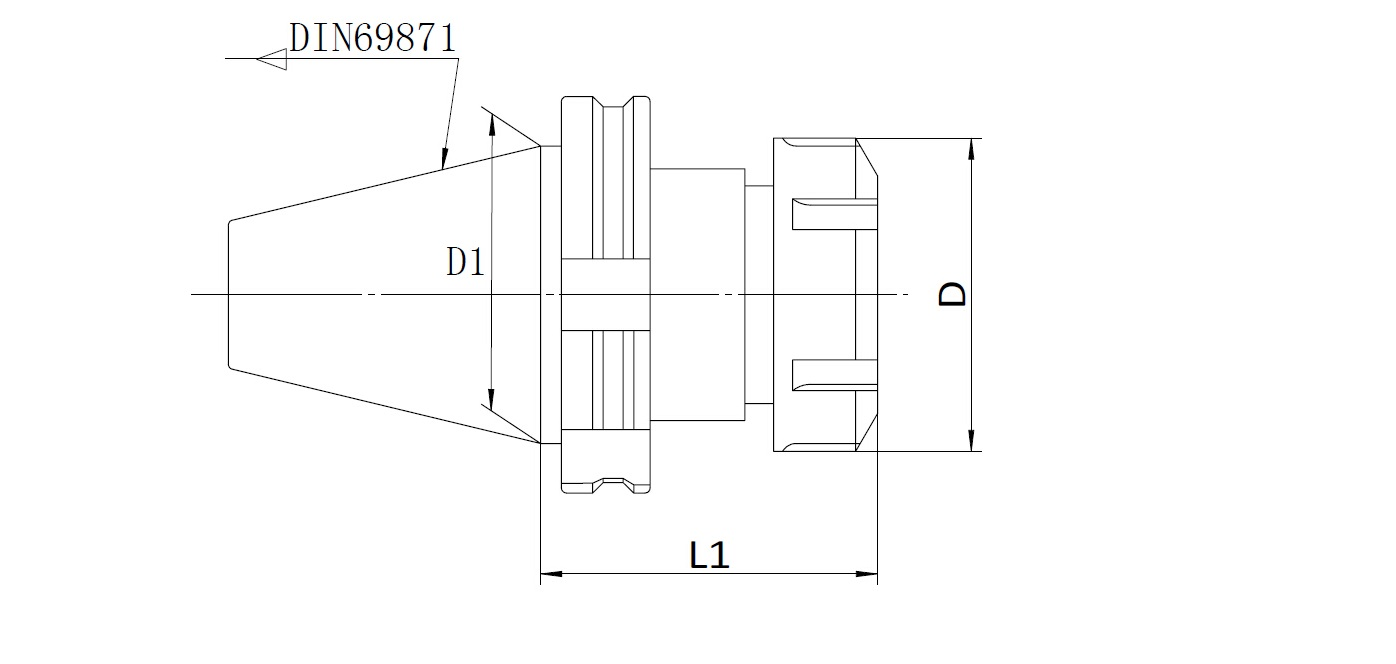

Model No. DIN69871.AXER-L1	D	D1	Model No. DIN69871.AXER-L1	D	D1
DIN69871.A30XER11-80	19	31.75	DIN69871.A40XER40-80	63	44.45
DIN69871.A30XER16-63	28	31.75	DIN69871.A40XER40-100	63	44.45
DIN69871.A30XER20-63	34	31.75	DIN69871.A40XER40-150	63	69.85
DIN69871.A30XER25-63	42	31.75	DIN69871.A40XER50-100	78	69.85
DIN69871.A40XER11-80	19	44.45	DIN69871.A50XER16-70	28	69.85
DIN69871.A40XER16-63	28	44.45	DIN69871.A50XER16-100	28	69.85
DIN69871.A40XER16-70	28	44.45	DIN69871.A50XER20-70	34	69.85
DIN69871.A40XER16-100	28	44.45	DIN69871.A50XER20-100	34	69.85
DIN69871.A40XER20-70	34	44.45	DIN69871.A50XER25-70	42	69.85
DIN69871.A40XER20-100	34	44.45	DIN69871.A50XER25-100	42	69.85
DIN69871.A40XER25-60	42	44.45	DIN69871.A50XER25-150	42	69.85
DIN69871.A40XER25-70	42	44.45	DIN69871.A50XER32-80	50	69.85
DIN69871.A40XER25-100	42	44.45	DIN69871.A50XER32-100	50	69.85
DIN69871.A40XER25-150	42	44.45	DIN69871.A50XER40-80	63	69.85
DIN69871.A40XER32-70	50	44.45	DIN69871.A50XER40-120	63	69.85
DIN69871.A40XER32-80	50	44.45	DIN69871.A50XER50-90	78	69.85
DIN69871.A40XER32-100	50	44.45	DIN69871.A50XER50-100	78	69.85
DIN69871.A40XER32-150	50	44.45	DIN69871.A50XER50-150	78	69.85
