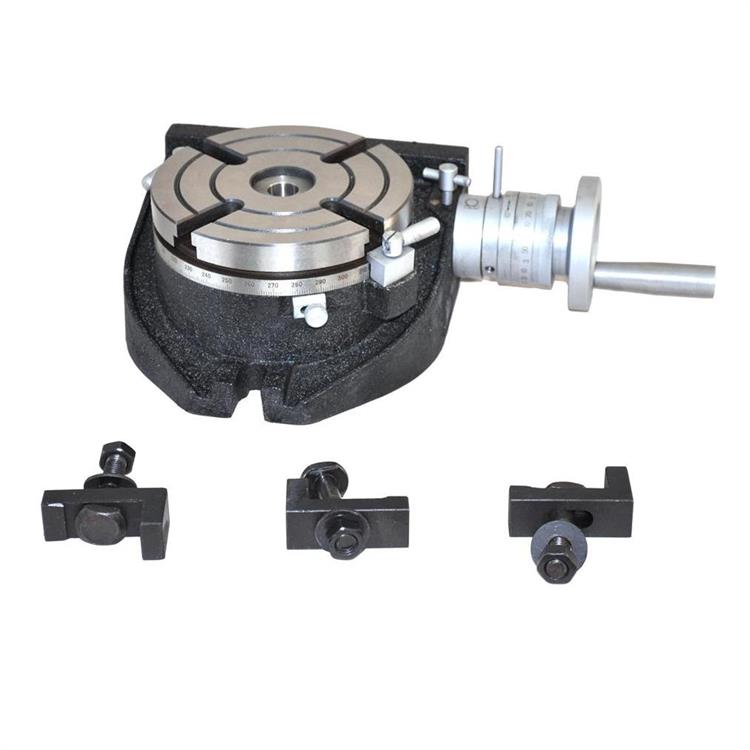

Vertical or Horizontal turning work table

1.it is main accessory in milling machine. it is used for indexing, circular cutting, angle setting, boring, spot facing operations etc.

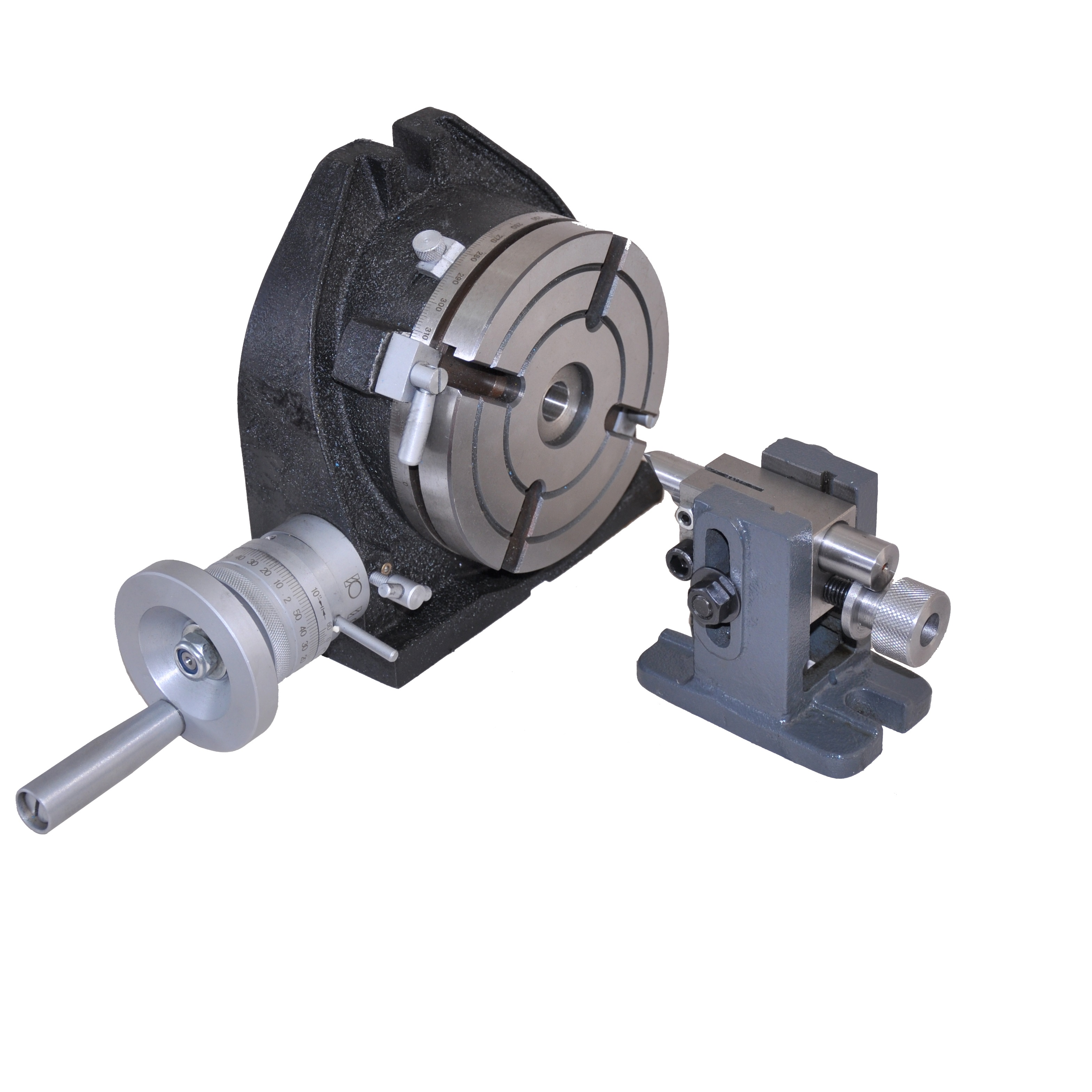

2. It permits maching operationgs at a higher dimension than that of ts type. It can be used in a vertical position to enable to carry out center work with the help of tailstock.
3. A flange is special supplied, and be packed independent. And the dividing plates accessory allows the operator to accurately divide the 360°ratation of the clamping surface into division of 2 through 66, and all divisible of 2,3 and 5 from 67--132.

1.it is main accessory in milling machine. it is used for indexing, circular cutting, angle setting, boring, spot facing operations etc.

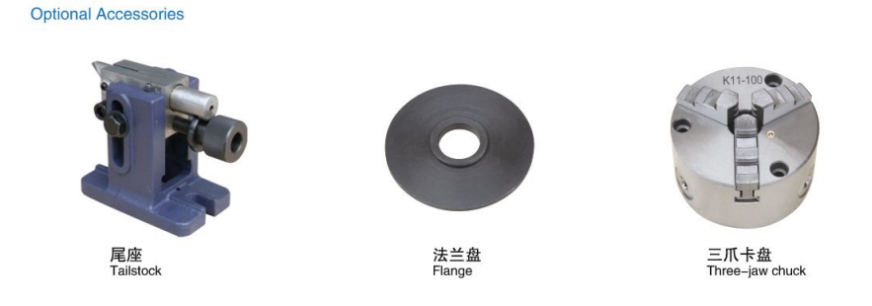

2. It permits maching operationgs at a higher dimension than that of ts type. It can be used in a vertical position to enable to carry out center work with the help of tailstock.

3. A flange is special supplied, and be packed independent. And the dividing plates accessory allows the operator to accurately divide the 360°ratation of the clamping surface into division of   2 through 66, and all divisible of 2,3 and 5 from 67--132.
