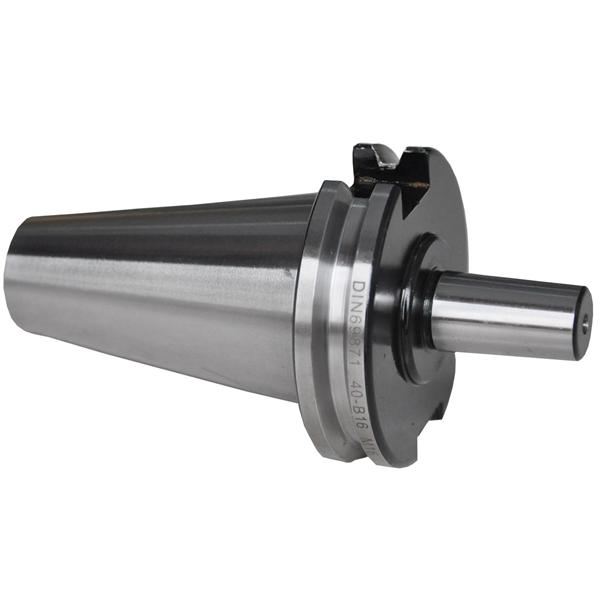

DIN69871 Drill Chuck Arbors

1. The holder is made of imported high strength material and has high wear resistance after special treatment.
2. The shank is connected with the spindle of the machine,and the front end is used in conjunction with various internal cone drill chucks.

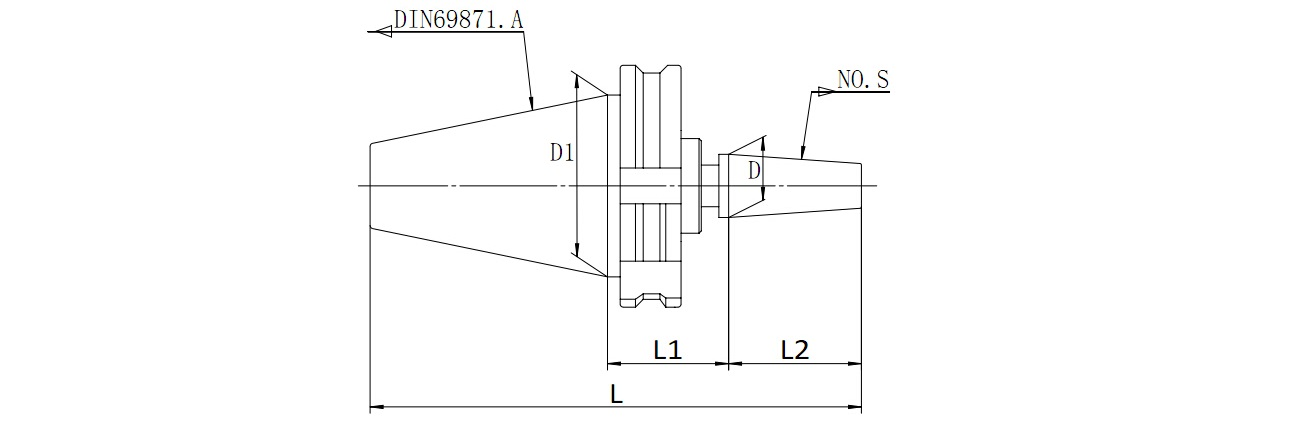

Model No.

DIN 69871.A-NO.S-L1

L2

L

D

D1

Drawbar Thread

DIN69871.A40-J0-32

11.112

111.5

6.35

44.45

M16

DIN69871.A40-J1-32

16.669

117.0

9.754

44.45

M16

DIN69871.A40-J2-32

22.225

122.6

14.199

44.45

M16

DIN69871.A40-J2S-32

19.05

119.5

13.940

44.45

M16

DIN69871.A40-J3-32

30.956

131.4

20.599

44.45

M16

DIN69871.A40-J4-32

42.069

142.5

28.550

44.45

M16

DIN69871.A40-J5-32

47.625

148.0

35.890

44.45

M16

DIN69871.A40-J6-32

25.40

125.8

17.170

44.45

M16

DIN69871.A40-J33-32

25.40

125.8

15.850

44.45

M16

DIN69871.A40-B6-32

10.0

110.4

6.35

44.45

M16

DIN69871.A40-B10-32

14.5

114.9

10.094

44.45

M16

DIN69871.A40-B10-45

14.5

127.9

10.094

44.45

M16

DIN69871.A40-B12-32

18.5

118.9

12.065

44.45

M16

DIN69871.A40-B12-80

18.5

166.9

12.065

44.45

M16

DIN69871.A40-B16-26

24.0

118.4

15.733

44.45

M16

DIN69871.A40-B16-32

24.0

124.4

15.733

44.45

M16

DIN69871.A40-B16-45

24.0

137.4

15.733

44.45

M16

DIN69871.A40-B18-32

32.0

132.4

17.780

44.45

M16

DIN69871.A40-B18-45

32.0

145.4

17.780

44.45

M16

DIN69871.A40-B22-32

40.5

140.9

21.793

44.45

M16

DIN69871.A40-B24-32

50.5

150.9

23.825

44.45

M16

DIN69871.A50-B16-45

24.0

170.75

15.733

69.85

M24

DIN69871.A50-J3-45

30.965

177.7

20.599

69.85

M24

DIN69871.A50-J6-45

25.4

172.1

17.170

69.85

M24

DIN69871.A50-J33-45

25.4

172.1

15.850

69.85

M24

DIN69871.A50-B16-45

24.0

170.8

15.733

69.85

M24

DIN69871.A50-B18-45

32.0

178.8

17.780

69.85

M24

DIN69871.A50-B22-60

40.5

202.3

21.793

69.85

M24

DIN69871.A50-B24-60

50.5

212.3

23.825

69.85

M24
