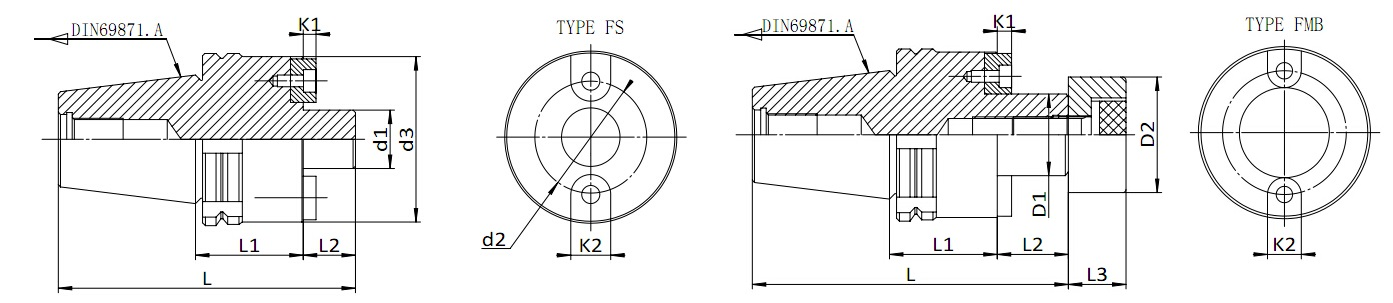

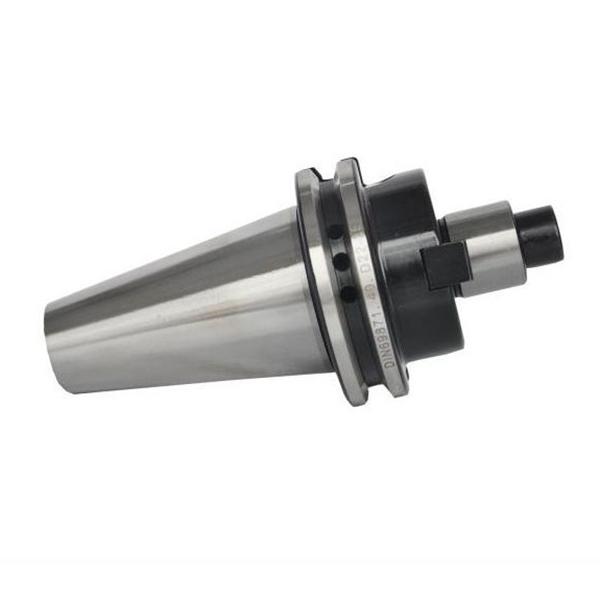

DIN 69871 Shell Mill Holders

1. The holder is made of imported high strength material and has high wear resistance after special treatment.
2. Special tool handle for the processing center or CNC machine's, front end assembly tool
3.When order please indicate the hilt the concrete form.If needs in the center cold and the flange water leakage hilt, please mark AD/B.
4.According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm


          Model               No.

    L

L1

L2

D

d1

d2

k1

k2

Wt(kg)

DIN69871.A30xFMB22-35

100.8

18

14

26

47

47

4.8

10

1.00

DIN69871.A30xFMB27-35

102.8

20

16

31.5

58

58

5.8

12

1.05

DIN69871.A40xFMB22-35

121.4

18

14

26

47

47

4.8

10

1.20

DIN69871.A40xFMB27-60

148.4

20

16

31.5

58

58

5.8

12

1.80

DIN69871.A40xFMB32-60

150.4

22

16

41

66

66

6.8

14

2.30

DIN69871.A40xFMB40-60

153.4

25

20.5

48

82

82

8.3

16

2.58

DIN69871.A50xFMB22-35

154.75

15

14

26

47

47

4.8

10

3.40

DIN69871.A50xFMB27-35

156.75

20

16

31.5

58

58

5.8

12

3.50

DIN69871.A50xFMB32-35

158.75

22

16

41

66

66

6.8

14

3.70

DIN69871.A50xFMB40-50

189.75

25

20.5

48

82

82

8.3

16

4.70

DIN69871.A50xFMB50-60

211.75

30

25

68

95

95

9.7

19

5.80

DIN69871.A50xFMB40F-60

158.4

30

66.7

M12

89

89

8.3

15.9

2.90

DIN69871.A50xFMB40F-70

201.75

30

66.7

M12

89

89

8.3

15.9

5.50

DIN69871.A50xFMB60F-70

211.75

40

101.6

M16

129

129

12.5

25.4

5.70

DIN69871.A50xFS40-60

154.4

26

66.7

50

110

110

8.3

16

3.20

DIN69871.A50xFS40-70

211.75

26

66.7

50

110

110

8.3

16

5.70

DIN69871.A50xFS60-70

196.75

25

101.6

M16

140

140

12.5

25.4

5.50
