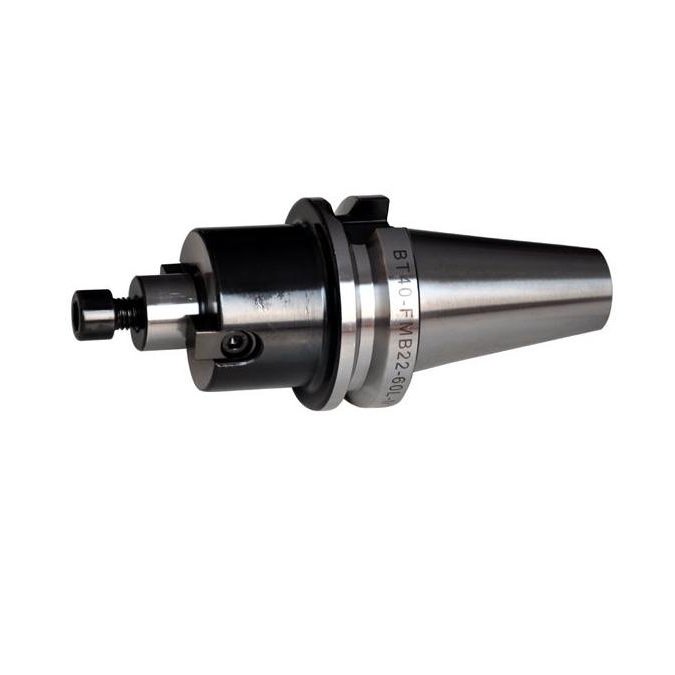

BT Shell Mill Holders

1. The holder is made of imported high strength material and has high wear resistance after special treatment.
2. Special tool handle for the processing center or CNC machine's, front end assembly tool
3.When order please indicate the hilt the concrete form.If needs in the center cold and the flange water leakage hilt, please mark AD/B.
4.According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm

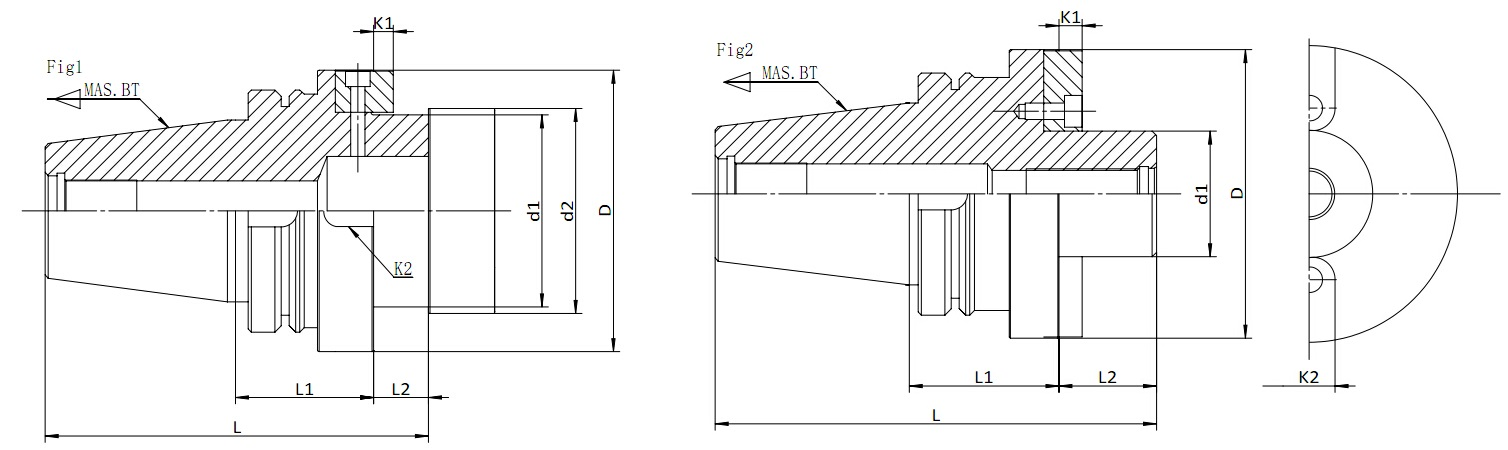

Model        No.

L

L1

L2

D

d1

d2

K1

K2

Wt.(kg)

BT30XFMB22-45

114.4

45

18

50

22

26

4.8

10

0.85

BT30XFMB22-60

126.4

60

18

50

22

26

4.8

10

1.25

BT30XFMB27-45

113.4

45

20

60

27

31.5

5.8

12

1.20

BT30XFMB27-60

128.4

60

20

60

27

31.5

5.8

12

1.35

BT30XFMB32-45

115.4

45

22

78

32

41

6.8

14

1.35

BT40XFMB22-45

128.4

45

18

48

22

26

4.8

10

1.45

BT40XFMB22-60

143.4

60

18

48

22

26

4.8

10

1.70

BT40XFMB22-100

173.4

100

18

48

22

26

4.8

10

2.20

BT40XFMB27-45

130.4

45

20

60

27

31.5

5.8

12

1.60

BT40XFMB27-60

145.4

60

20

60

27

31.5

5.8

12

2.00

BT40XFMB27-90

175.4

90

20

60

27

31.5

5.8

12

2.30

BT40XFMB27-105

190.4

105

20

60

27

31.5

6.8

12

2.50

BT40XFMB32-45

132.4

45

22

78

32

41

6.8

12

1.75

BT40XFMB32-60

147.4

60

22

78

32

41

8.3

14

2.10

BT40XFMB40-60

150.4

60

25

80

40

48

4.8

14

2.80

BT50XFMB22-45

164.8

45

18

48

22

26

4.8

16

4.50

BT50XFMB22-90

209.8

90

18

48

22

26

4.8

10

5.10

BT50XFMB22-150

369.8

150

18

48

22

26

4.8

10

6.80

BT50XFMB27-50

171.8

50

20

60

27

31.5

5.8

10

7.00

BT50XFMB27-90

211.8

90

20

60

27

31.5

5.8

10

8.00

BT50XFMB27-150

271.8

150

20

60

27

31.5

5.8

12

7.50

BT50XFMB32-50

173.8

50

22

78

32

41

6.8

12

9.50

BT50XFMB32-90

213.8

90

22

78

32

41

6.8

12

11.0

BT50XFMB40-50

176.8

50

25

89

40

48

8.3

12

5.70

BT50XFMB40-90

216.8

90

25

89

40

48

8.3

14

5.80

BT50XFMB40-105

231.8

105

25

98

40

48

8.3

14

5.20

BT50XFMB40F-75

202.8

75

26

110

40

---

8.3

16

6.00

BT50XFMB60-75

201.8

75

25

140

60

---

12.5

16

7.20
