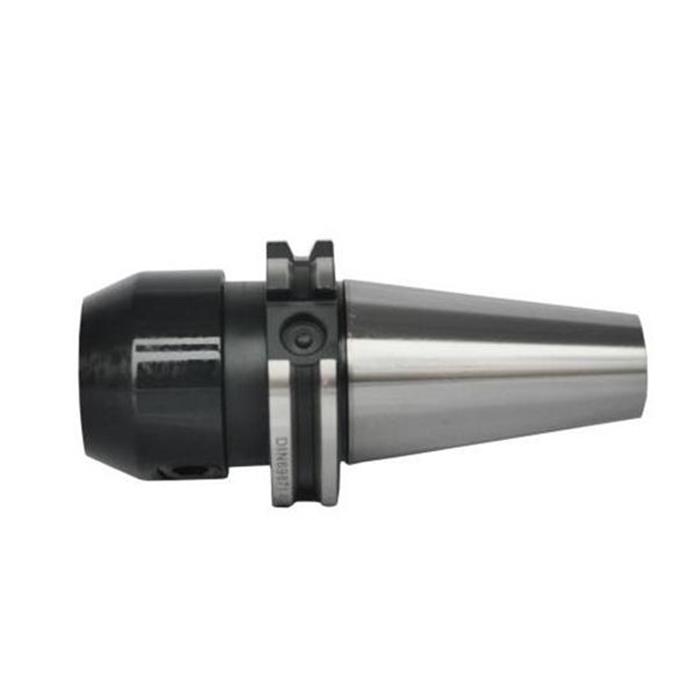

DIN69871 End Mill Adapters

1. The holder is made of imported high strength material and has high wear resistance after special treatment.
2.The holder is connnected to the CNC machine,the inner hole with the cutter
3.When order please indicate the hilt the concrete form.If needs in the center cold and the flange water leakage hilt, please mark AD/B.
4.According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm

Productproduct

Product Introduce

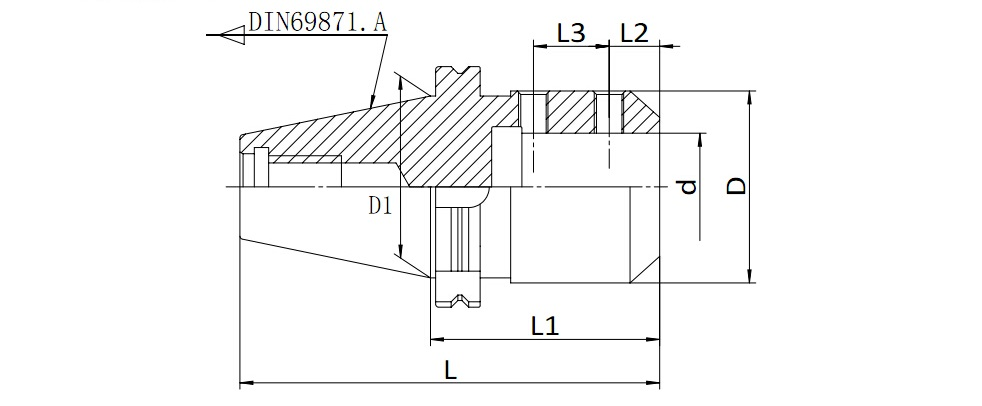

Model No. DIN69871.Axd-L1	L	D	D1	L2	L3	Wt(kg)
DIN69871.A30X6-50	97.8	25	31.75	18		0.58
DIN69871.A30X8-50	97.8	28	31.75	18		0.64
DIN69871.A30X10-50	97.8	35	31.75	20		0.72
DIN69871.A30X12-50	97.8	42	31.75	22.5		0.80
DIN69871.A30X16-50	97.8	48	31.75	24		0.96
DIN69871.A40X6-50	118.4	25	44.45	18		0.92
DIN69871.A40X8-50	118.4	28	44.45	18		0.96
DIN69871.A40X10-50	118.4	35	44.45	20		1.10
DIN69871.A40X12-50	118.4	42	44.45	22.5		1.12
DIN69871.A40X14-50	118.4	44	44.45	22.5		1.12
DIN69871.A40X16-63	131.4	48	44.45	24		1.20
DIN69871.A40X18-63	131.4	50	44.45	24		1.20
DIN69871.A40X20-63	131.4	52	44.45	25		1.32
DIN69871.A40X25-100	168.4	65	44.45	24	25	2.04
DIN69871.A40X32-100	168.4	72	44.45	24	28	2.24
DIN69871.A40X40-120	188.4	90	44.45	30	32	2.40
DIN69871.A50X6-63	164.75	25	69.85	18		3.30
DIN69871.A50X8-63	164.75	28	69.85	18		3.40
DIN69871.A50X10-63	164.75	35	69.85	20		3.42
DIN69871.A50X12-63	164.75	42	69.85	22.5		3.42
DIN69871.A50X14-63	164.75	44	69.85	22.5		3.44
DIN69871.A50X16-63	164.75	48	69.85	24		3.46
DIN69871.A50x18-63	164.75	50	69.85	24		3.48
DIN69871.A50X20-63	164.75	52	69.85	25		4.24
DIN69871.A50X25-80	181.75	65	69.85	24	25	4.40
DIN69871.A50X32-100	201.75	72	69.85	24	28	4.52
DIN69871.A50X40-120	221.75	90	69.85	30	32	4.72
