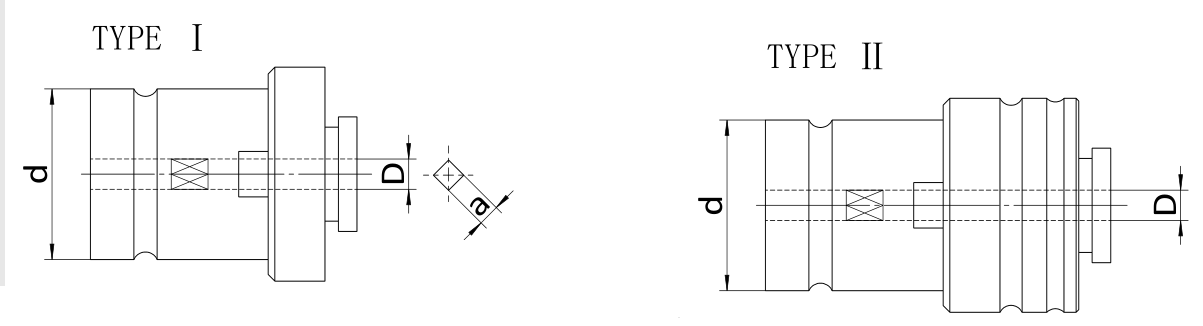

Model No | ISO DXa | DIN371DXa | DIN376 DXa | JIS DXa | D(mm) |
M2 | 2.8X2.25 | 2.8x2.1 | 2.5x2.1 | 3x2.5 | 19 |
M3(1/8) | 3.15x2.5 | 3.5x2.7 | 4x3.2 | ||
M4(5/32) | 4x3.15 | 4.5x3.4 | 5x4 | ||
M5(3/16) | 5x4 | 6x4.9 | 5.5x4.5 | ||
M6(1/4) | 6.3x5 | 6x4.9 | 6x4.5 | ||
M8(5/16) | 6.3x5 | 8x6.2 | 6x4.9 | 6.2x5 | |
M10(3/8) | 8x6.3 | 10x8 | 7x5.5 | 7x5.5 | |
M12 | 9x7.1 | 9x7 | 8.5x6.5 | 19/31 | |
1/2” | 9x7.1 | 9x7 | 9x7 | 31 | |
M14(9/16) | 11.2x9 | 11x9 | 10.5x8 | ||
M16 | 12.5x10 | 12x9 | 12.5x10 | ||
5/8” | 12.5x10 | 12x9 | 12x9 | ||
M18(3/4) | 14x11.2 | 14x11 | 14x11 | ||
M20 | 14x11.2 | 16x12 | 15x12 | ||
M22(7/8) | 16x12.5 | 18x14.5 | 17x13 | ||
M24 | 18x14 | 18x14.5 | 19x15 | 31/48 | |
M27(1”) | 20x16 | 20x16 | 20x15 | 48 | |
M30 | 20x16 | 22x18 | 23x17 | ||
M33 | 22.4x18 | 25x20 | 25x19 | ||
M36 | 25x20 | 28x22 | 28x21 | ||
PT1/16-28 | 8x6 | 19 | |||
PT1/8-28 | 8x6 | ||||
PT1/4-19 | 11x9 | 31 | |||
PT3/8-19 | 14x11 | ||||
PT1/2-14 | 18x14 | ||||
PT3/4-14 | 23x17 | 48 |
