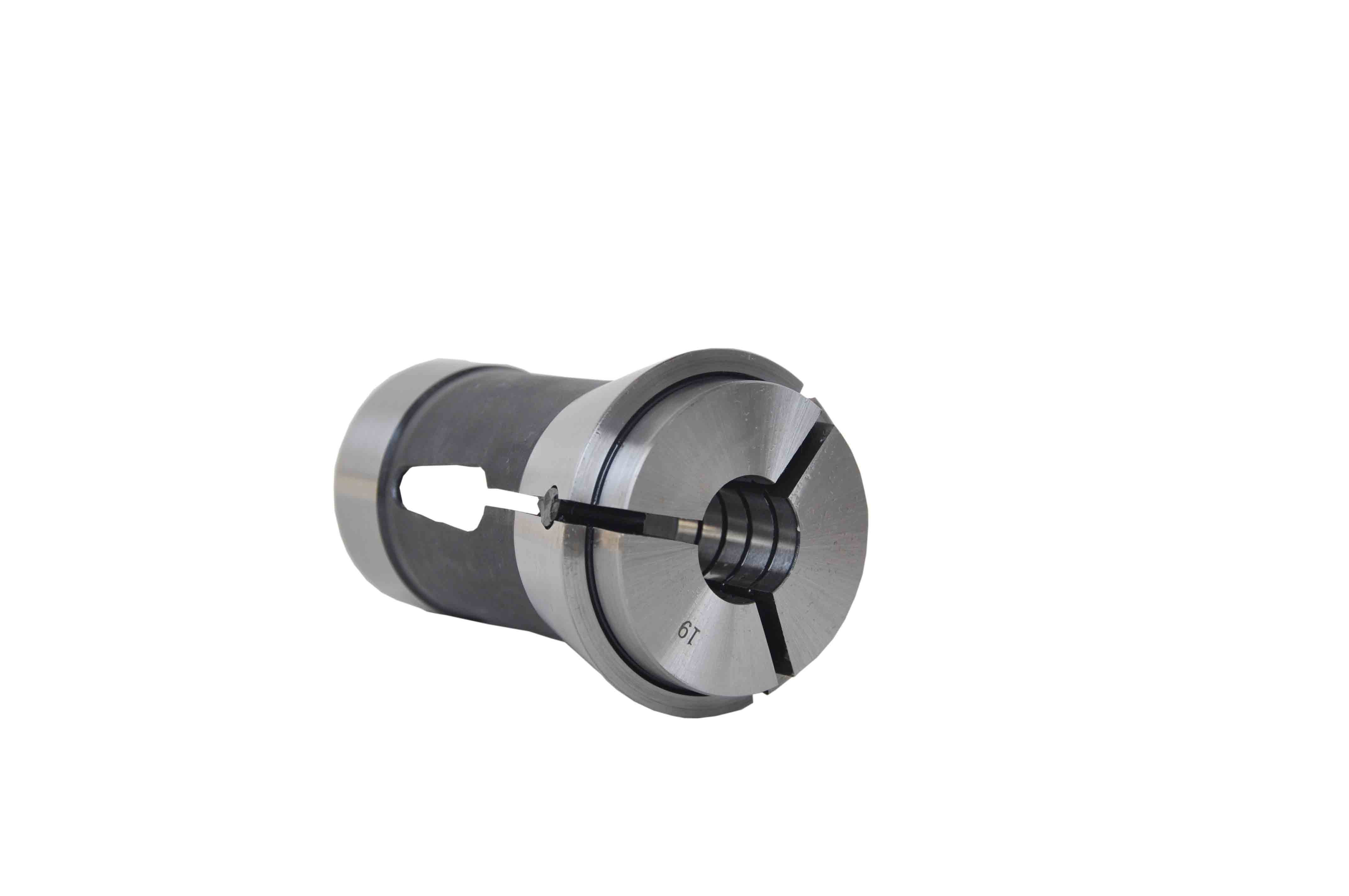

DIN6343 Clamping Collets

1.Adopt high strength special material ,after quenching, through cryogenic treatment, the product performance is stable,wear-resisting and durable
2.After the work hole has been shaped by the hole expansion,the elastic range increases, and it is convenient to clip and unload materials
3.This unit is applicable to all sorts of automatic lathes,turrel lathes.
4.Hardness:clamping part HRC55-60
elastic part HRC40-45

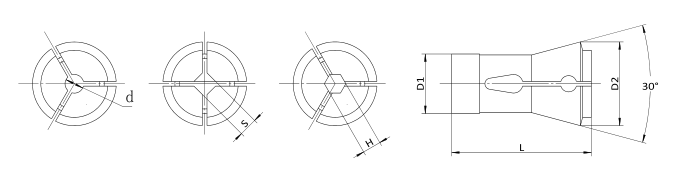

Model

D1(mm)

D2(mm)

L(mm)

Hole size(mm)

Wt(Kg)

Dmax

Smax

Hmax

DIN6343-F17.5

17.5

22

51

13

8

10

0.05

DIN6343-F22

22

30

55

16

11

13

0.09

DIN6343-F27

27

38

72.7

22

15

19

0.10

DIN6343-F28

28

38

70

22

15

19

0.12

DIN6343-F32

32

45

75

26

18

22

0.27

DIN6343-F35

35

48

80

30

21

26

0.35

DIN6343-F42

42

55

94

36

25

30

0.49

DIN6343-F48

48

60

94

42

29

36

0.57

DIN6343-F56

56

68

94

50

35

42

0.65

DIN6343-F66

66

84

110

60

42

52

1.16
