MORE THAN 20 YEARS EXPERIENCE AND PROFESSION IN MACHINERY TOOL ACCESSORIES FIELD,

we can supply the most sorts and specifications of tools and accessories such as collects , cnc tool holders , drill chucks ,machine vises , quick change tool post and holders , centers , sleeves ,sharpening machine , cutting tool etc .

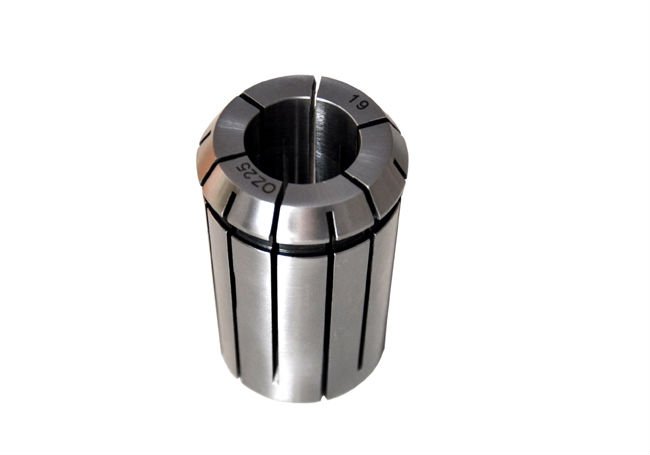

DIN6388B EOCB(OZ) Collets

1.Adopt high strength special material,after quenching,through cryogenic treatment, the product performance is stable,wear-resisting and durable
2.High clamping force,high precision
3.Used for boring,milling,drilling,tapping,grinding and engraving operation etc.
4.Max clamping range :0.5mm

Productproduct

Product Introduce

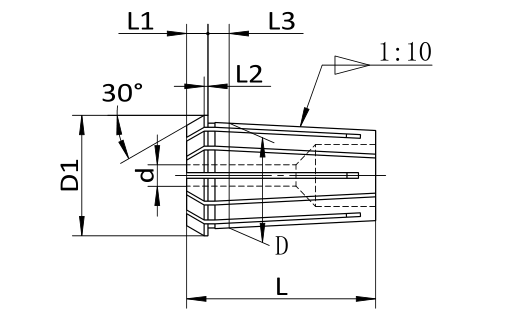

Model No.	D1	D	d	L	L1	L2	L3
EOC/OZ 16B	25.5	22.65	2-16	40	5.5	1.2	9.5
EOC/OZ 20B	29.8	27.4	2-20	45	6	1.35	10
EOC/OZ 25B	35.05	32.9	2-25	52	6	1.4	10
EOC/OZ 32B	43.7	41.3	4-32	60	6	1.45	11
EOC/OZ 40B	52.2	49.7	6-40	68	6	1.45	12
EOC/OZ 50B	63.8	61.1	8-50	80	7	1.55	13

DIN6388B EOCB(OZ) Collets
