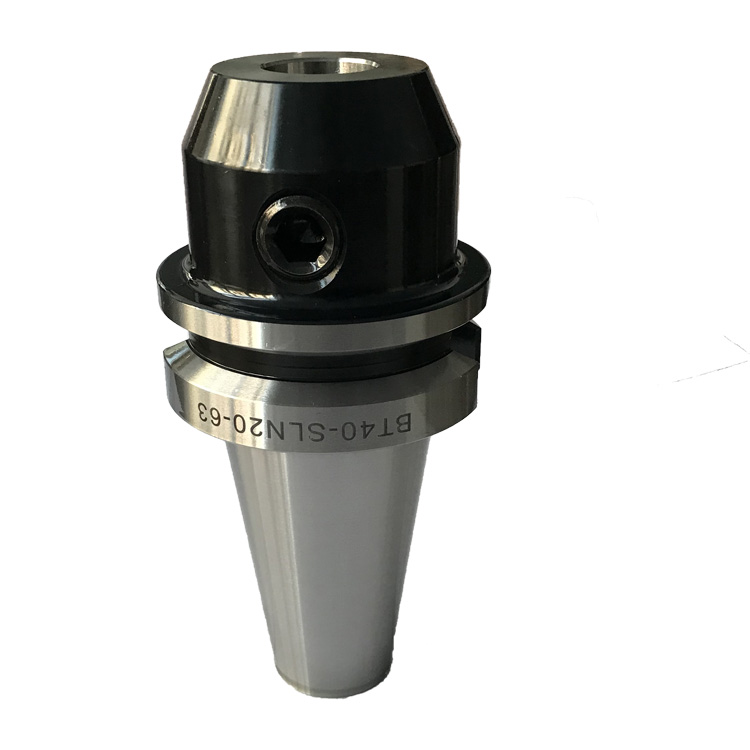

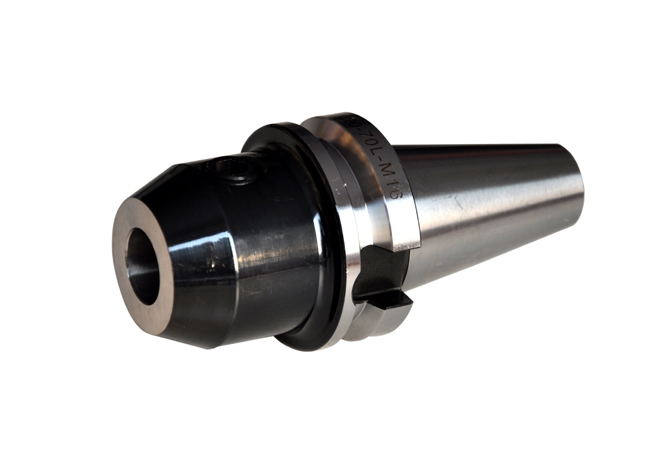

BT end mill adapters

1. The holder is made of imported high strength material and has high wear resistance after special treatment.
2.Special tool handle for CNC machine's inner hole with cutter
3.When order please indicate the hilt the concrete form.If needs in the center cold and the flange water leakage hilt, please mark AD/B.
4.According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm

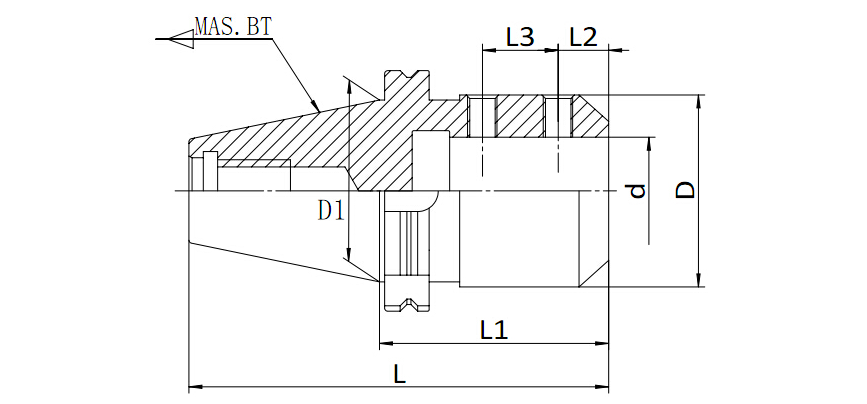

   Model     No. L   D D1L2L3   Weight(KGS)

BT30x6-50

98.4

25

31.75

18


0.66

BT30x6-60

108.4

25

31.75

18


0.72

Bt30x8-60

108.4

28

31.75

18


0.80

BT30x10-60

108.4

35

31.75

20


0.83

BT30x10-80

128.4

35

31.75

20


0.83

BT30x12-60

108.4

42

31.75

22.5


0.88

BT30x14-60

108.4

44

31.75

22.5


1.02

BT30x16-75

123.4

48

31.75

24


1.04

BT30x18-75

123.4

50

31.75

24


1.26

BT30x20-75

123.4

52

31.75

25


1.36

BT30x25-90

138.4

65

31.75

24

25

1.50

BT40x6-50

115.4

25

44.45

18


0.96

BT40x6-60

125.4

25

44.45

18


0.98

BT40x8-50

115.4

28

44.45

18


1.00

BT40x10-63

128.4

35

44.45

20


1.08

BT40x12-63

128.4

42

44.45

22.5


1.20

BT40x14-63

128.4

44

44.45

22.5


1.22

BT40-16x63

128.4

48

44.45

24


1.24

BT40x16-70

135.4

48

44.45

24


1.30

BT40x18-63

128.4

50

44.45

24


1.36

BT40x20-63

128.4

52

44.45

25


1.36

BT40x20-70

135.4

52

44.45

25


2.10

BT40x25-90

155.4

65

44.45

24

25

2.07

BT40x25-100

165.4

65

44.45

24

25

2.08

BT40x32-100

165.4

72

44.45

24

28

2.25

BT40x32-110

175.4

72

44.45

24

28

2.30

BT40x40-120

185.4

90

44.45

30

32

2.50

BT40x40-140

205.4

90

44.45

30

32

2.80

BT50x6-63

164.8

25

69.85

18


3.20

BT50x8-63

164.8

28

69.85

18


3.23

BT50x10-63

164.8

35

69.85

20


3.24

BT50x12-80

181.8

42

69.85

22.5


3.36

BT50x16-80

181.8

48

69.85

24


3.48

BT50x20-80

181.8

52

69.85

25


3.52

BT50x25-100

201.8

65

69.85

24

25

4.28

BT50x25-105

206.8

65

69.85

24

25

4.30

BT50x25-150

251.8

65

69.85

24

25

4.35

BT50x25-200

301.8

65

69.85

24

25

4.40

BT50x32-100

201.8

72

69.85

24

28

4.44

BT50x32-105

206.8

72

69.85

24

28

4.56

BT50x40-115

216.8

90

69.85

30

32

4.58

BT50x40-120

221.8

90

69.85

30

32

4.58

BT50x50-150

251.8

100

69.85

35

35

4.90
