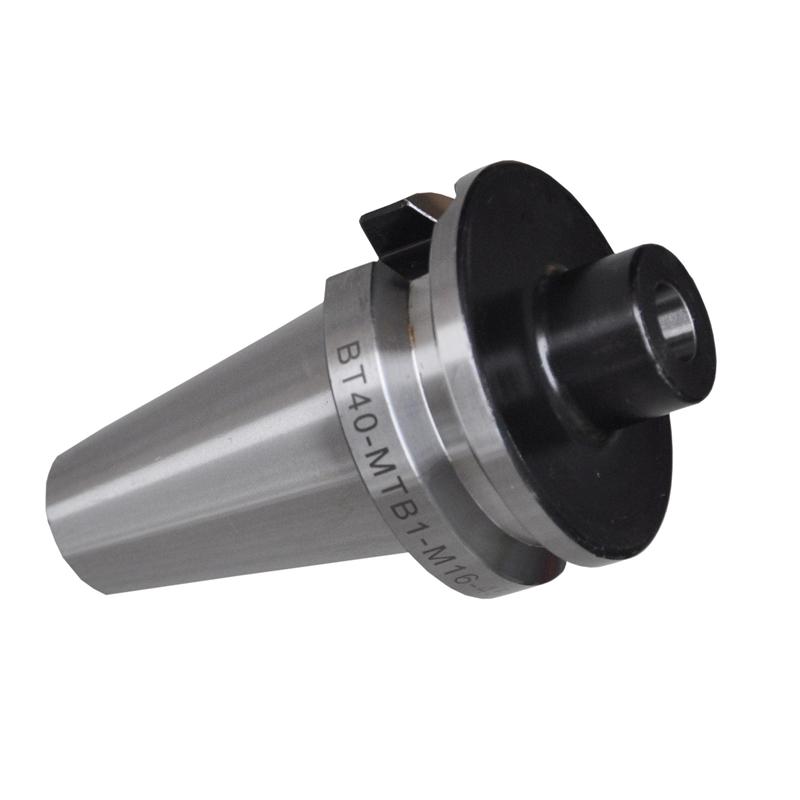

BT Morse Taper with drawbar

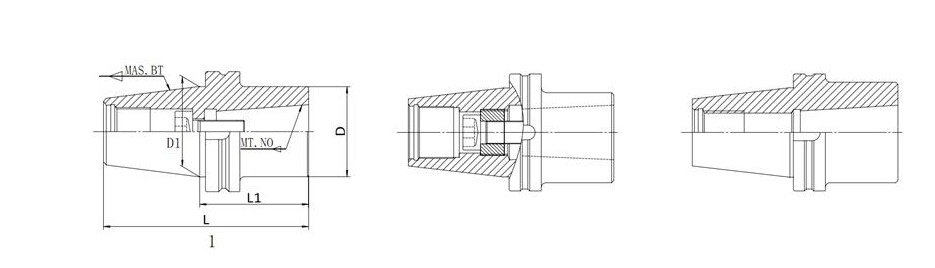

Note: see figure 1, when the arbor being used, it is necessary to fix inner hex screw.
see figure 2, when the arbor being used, it is necessary to fix standard knob,
see figure 3,when the arbor being used, it is necessary to fix extention knob.
The holder is made of imported high strength material and has high wear resistance after special treatment.
3.When order please indicate the hilt the concrete form.If needs in the center cold and the flange water leakage hilt, please mark AD/B.
4.According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm


Model     No.

BTxMT.NO>-L1

LDD1


Figure

BT40xMTB1-45110.42544.451
BT40XMTB2-60125.43244.451
BT40XMTB3-75140.44044.452
BT40XMTB3-90155.44044.452
BT40XMTB4-95160.44844.453
BT40XMTB4-100165.44844.452
BT50XMTB1-45146.82569.851
BT50XMTB2-45146.83269.851
BT50XMTB2-60161.83269.851
BT50XMTB3-60161.84069.851
BT50XMTB3-75176.84069.851
BT50XMTB4-80181.84869.853
BT50XMTB4-100201.84869.852
BT50XMTB5-100201.86369.853
BT50XMTB5-120221.86369.852
