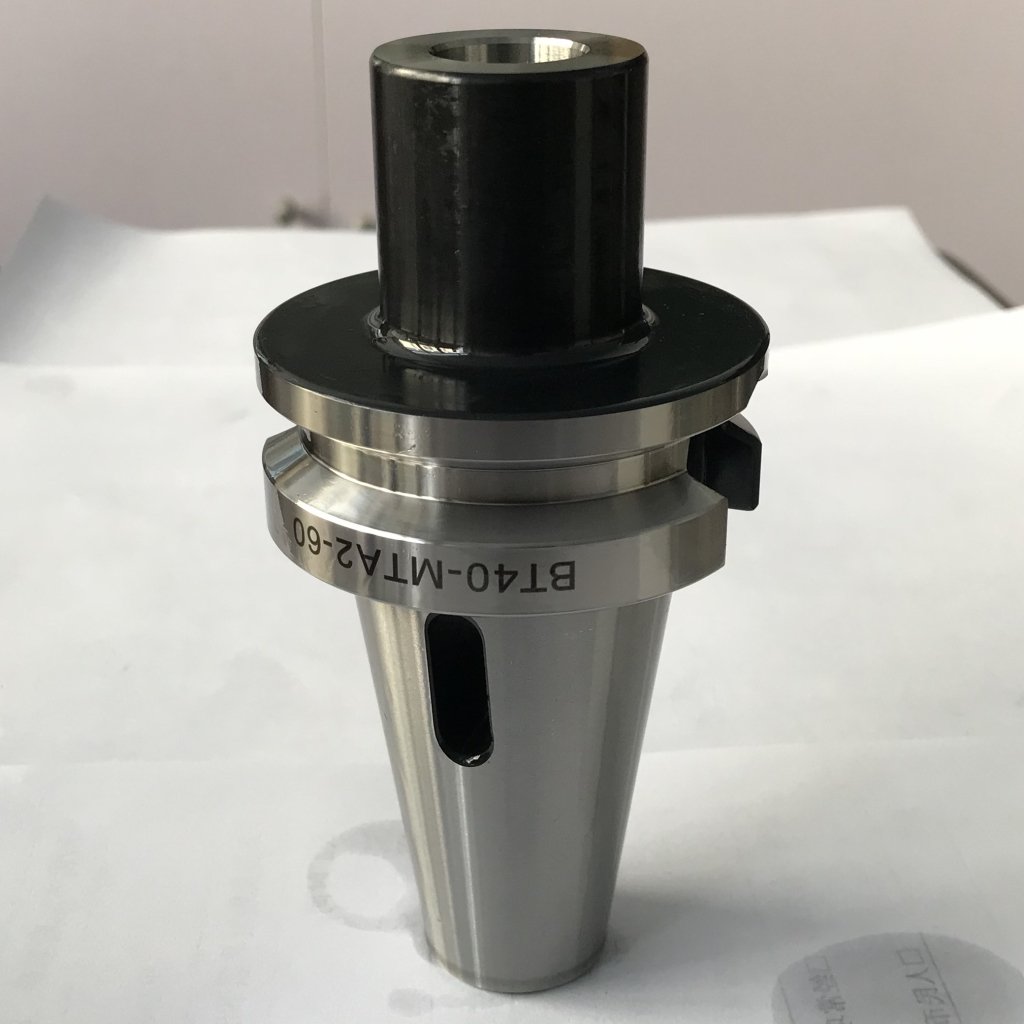

BT Morse Taper with Tang

1. The holder is made of imported high strength material and has high wear resistance after special treatment.
2.The outer taper shank is conneted to the CNC machine, and the inner taper shank is connected to different types of MT bit and MT arbor with flat tail
3.When order please indicate the hilt the concrete form.If needs in the center cold and the flange water leakage hilt, please mark AD/B.
4.According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm

Productproduct

Product Introduce

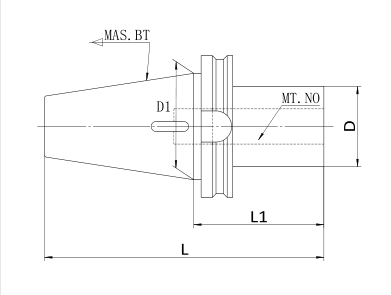

Model No. BTxMT No.-L1	L	D	D1	Weight(kg)
BT30XMTA1-45	93.4	25	31.75	0.55
BT30XMTA2-60	108.4	32	31.75	0.90
BT30XMTA3-80	128.4	40	31.75	0.90
BT40XMTA1-45	110.4	25	44.45	1.20
BT40XMTA2-50	115.4	32	44.45	1.55
BT40XMTA2-60	125.4	32	44.45	1.65
BT40XMTA3-70	135.4	40	44.45	1.80
BT40XMTA4-90	155.4	48	44.45	2.30
BT40XMTA4-95	160.4	48	44.45	2.40
BT40XMTA4-135	200.4	48	44.45	2.65
BT45XMTA1-120	202.4	25	57.15	1.90
BT45XMTA2-120	202.8	32	57.15	2.30
BT45XMTA3-120	202.8	40	57.15	2.40
BT45XMTA4-98	180.8	48	57.15	2.40
BT50XMTA1-45	146.8	25	69.85	4.10
BT50XMTA2-50	151.8	32	69.85	4.00
BT50XMTA2-60	161.8	32	69.85	4.20
BT50XMTA2-120	221.8	32	69.85	4.30
BT50XMTA3-65	166.8	40	69.85	4.20
BT50XMTA3-75	176.8	40	69.85	4.30
BT50XMTA3-120	221.8	40	69.85	4.40
BT50XMTA3-150	251.8	40	69.85	4.68
BT50XMTA4-95	196.8	48	69.85	5.00
BT50XMTA5-105	206.8	63	69.85	5.00
