collet

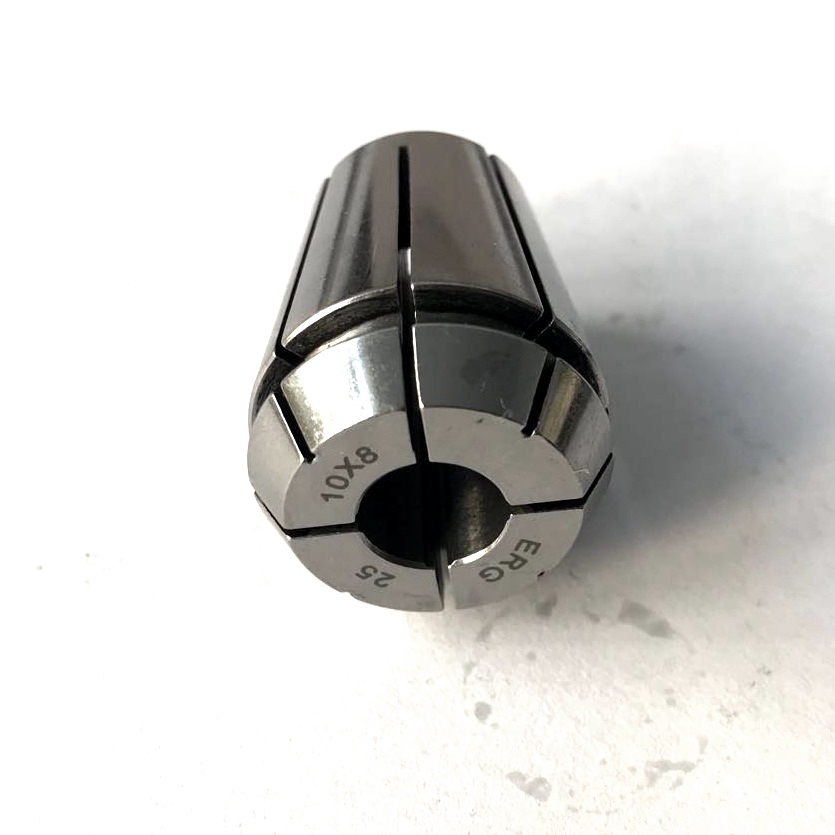

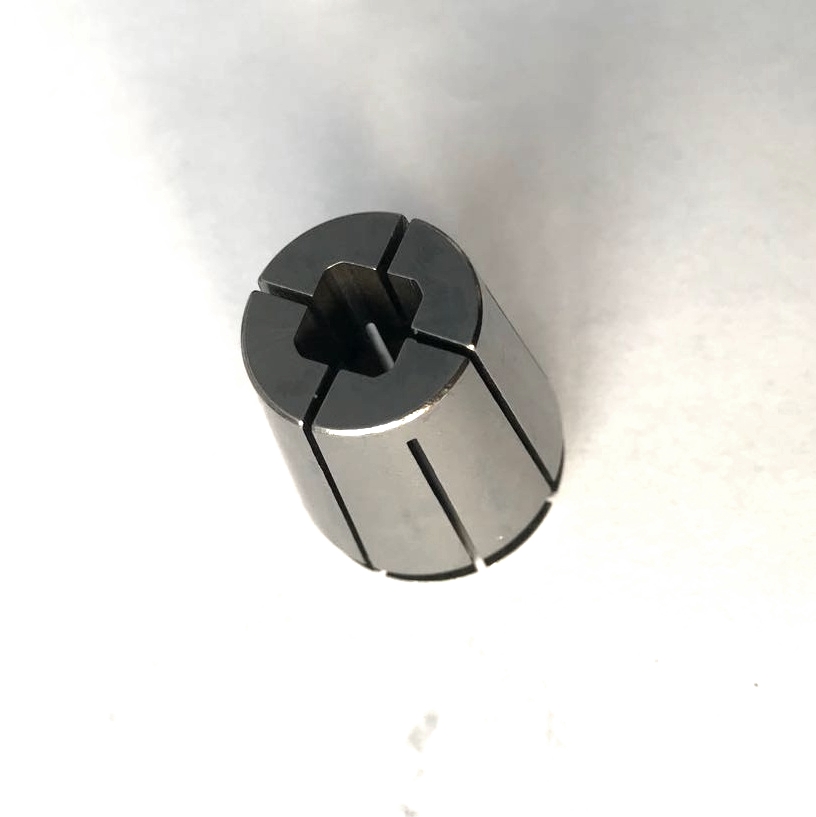

ERG Tapping Collet

1.Material:65Mn
2.Hardness:HRC44-48
3.Rigid tapping chuck,rely on the quartet to prevent the tap slip
4.Used for ordinary ER type tool shanks, also can be used on the special tool shanks.

Productproduct

Product Introduce

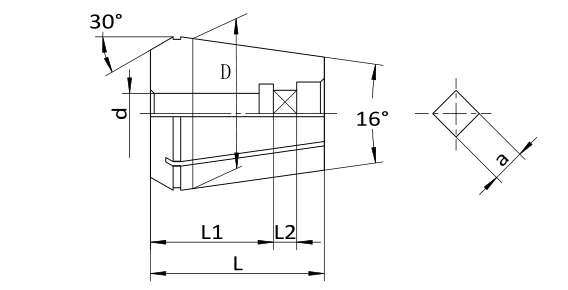

Model No.	ERG16-d	ERG20-d	ERG25-d	ERG32-d	ERG40-d
D	16	20	25	32	40
L	27.5	31.5	34	40	46
d	3.5-8	3.5-10	3.5-16	3.5-20	3.5-25

dxa

3.5x2.7

4.0x3.0

4.5x3.4

5.5x4.3

6.0x4.9

7.0x5.5

8.0x6.2

9.0x7.0

10x8.0

11x9.0

12x9.0

14x11

16x12

18x14.5

20x16

22x18

25x20
