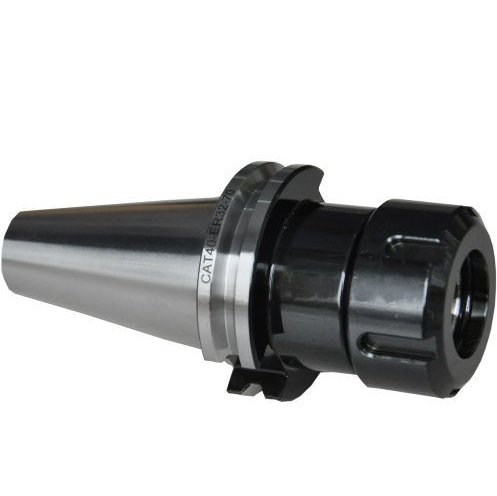

CAT er collet chuck

1. The holder is made of imported high strength material and has high wear resistance after special treatment.
2.Special tool handle for machining centers or CNC machine tools
3.According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm
4.First put the collet into the nut, then the drill bit into collet, and finally tighten the nut to lock the holder
5.Collet has spring, sealed-up, tapping etc.

Productproduct

Product Introduce

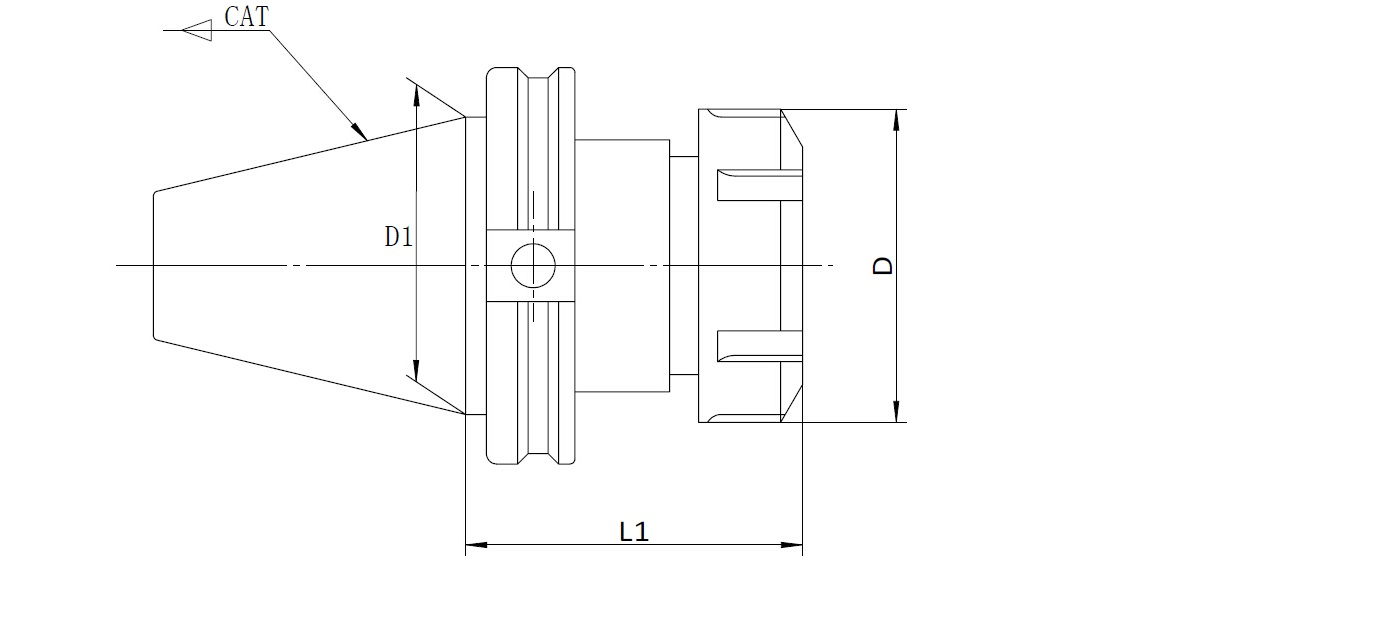

Order no. CATXER-L1	D	D1	Order no. CATxER-L1	D	D1
CAT40XER16-63	28	44.45	CAT40XER50-80	78	44.45
CAT40XER16-70	28	44.45	CAT40XER50-100	78	44.45
CAT40XER16-100	28	44.45	CAT50XER16-70	28	69.85
CAT40XER16-150	28	44.45	CAT50XER16-90	28	69.85
CAT40XER20-70	34	44.45	CAT50XER16-100	28	69.85
CAT40XER20-90	34	44.45	CAT50XER20-70	34	69.85
CAT40XER20-100	34	44.45	CAT50XER20-90	34	69.85
CAT40XER20-150	34	44.45	CAT50XER20-100	34	69.85
CAT40XER25-70	42	44.45	CAT50XER20-150	34	69.85
CAT40XER25-90	42	44.45	CAT50XER25-70	42	69.85
CAT40XER25-100	42	44.45	CAT50XER25-100	42	69.85
CAT40XER25-150	42	44.45	CAT50XER25-150	42	69.85
CAT40XER32-70	50	44.45	CAT50XER32-70	50	69.85
CAT40XER32-100	50	44.45	CAT50XER32-80	50	69.85
CAT40XER32-150	50	44.45	CAT50XER32-100	50	69.85
CAT40XER40-70	63	44.45	CAT50XER40-80	63	69.85
CAT40XER40-80	63	44.45	CAT50XER40-100	63	69.85
CAT40XER40-100	63	44.45	CAT50XER50-90	78	69.85
CAT40XER40-150	63	44.45	CAT50XER50-100	78	69.85
