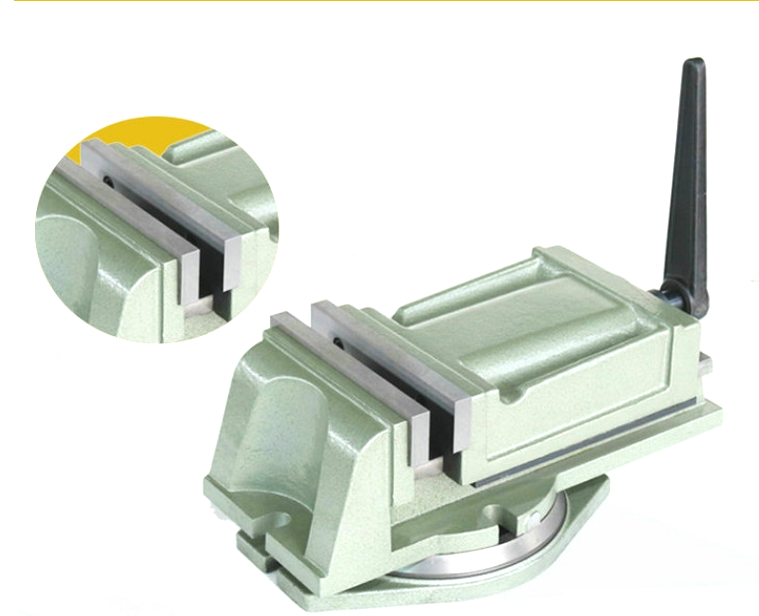

Q12(QH) MACHINE VISES

Performance and character:
1.It adopts the high-quality cast irons
2.Both parallelism and verticality about the two jaws are 0.025mm/100mm
3.It is widely used for the milling machine and the drlling machine to process some surface, slots and holes.

Productproduct

Product Introduce

Order No.	Width of Jaw(mm)	Height of Jaw(mm)	Max. Opening(mm)	GW./NW(kg)	Q^, TY	Packing Size(mm)
Q1280	80	32	63	30\28	4	270300130
Q12100	100	35	80	45\44	4	280300140
Q12125	125	40	100	18\17	1	350180170
Q12160	160	52	125	34\33	1	450240250
Q12200	200	63	160	45\44	1	510260210
