MORE THAN 20 YEARS EXPERIENCE AND PROFESSION IN MACHINERY TOOL ACCESSORIES FIELD,

we can supply the most sorts and specifications of tools and accessories such as collects , cnc tool holders , drill chucks ,machine vises , quick change tool post and holders , centers , sleeves ,sharpening machine , cutting tool etc .

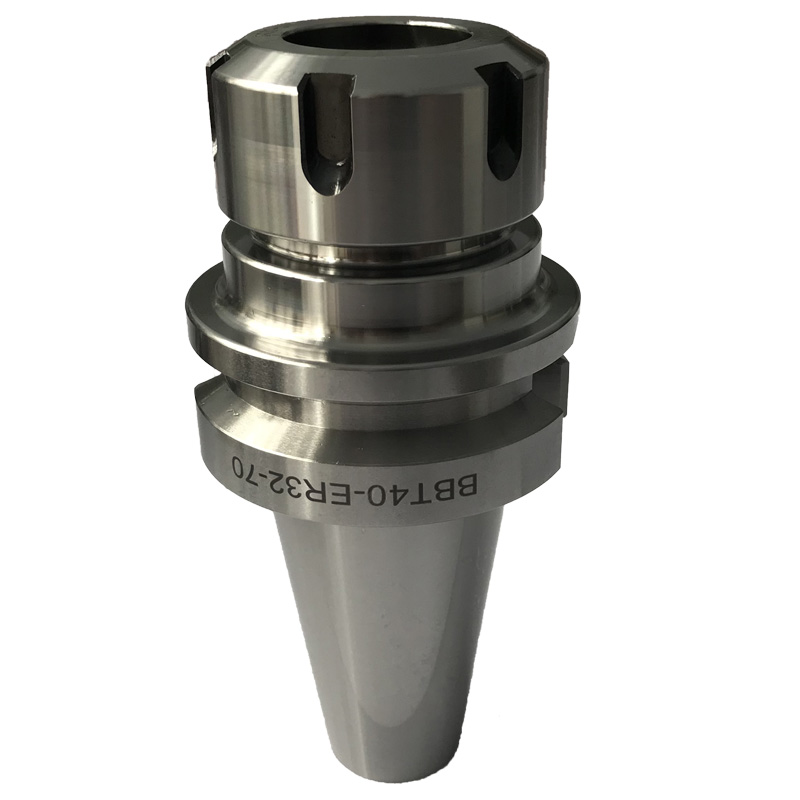

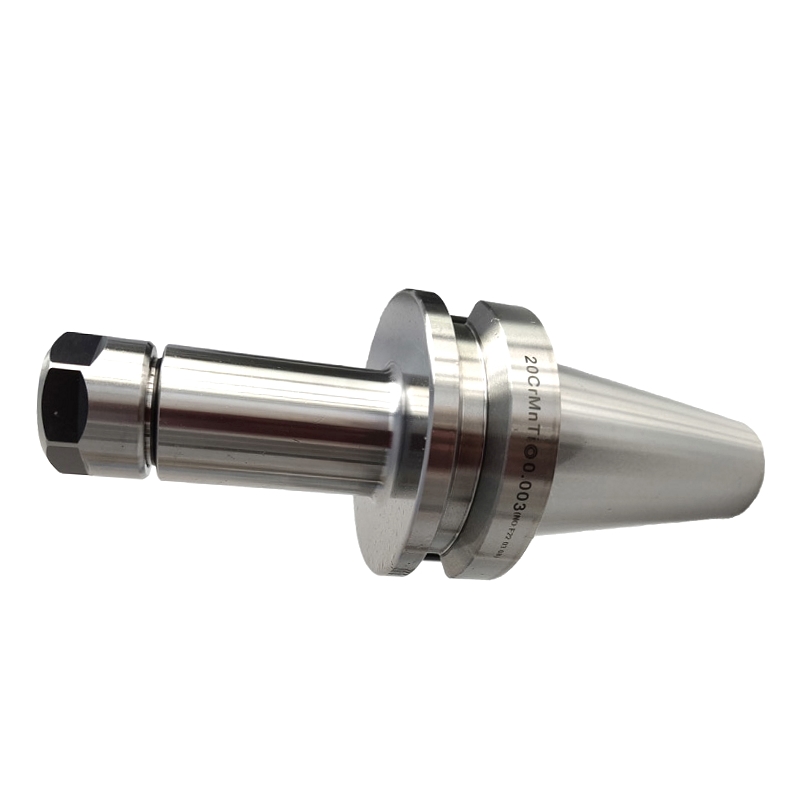

BBT ER collet chuck

1. material : 20CrMnTi
2. Hardness:HRC56-58
3 inner and outer molding in same time ，high concentricity
4.First put the collet into the nut, then the drill bit into collet, and finally tighten the nut to lock the holder
5.the precise precision is G2.5/25000rpm

Productproduct

Product Introduce

Model No. BBTxER-L1	D	D1	Model No. BTxER-L1	D	D1
BBT30XER16-70	28	31.75	BBT45XER25-70	42	57.15
BBT30XER20-70	34	31.75	BBT45XER25-100	42	57.15
BBT30XER25-70	42	31.75	BBT45XER32-70	50	57.15
BBT30XER32-70	50	31.75	BBT45XER32-100	50	57.15
BBT30XER40-80	63	31.75	BBT45XER32-120	50	57.15
BBT40XER16-70	28	44.45	BBT45XER40-80	63	57.15
BBT40XER20-70	34	44.45	BBT45XER40-100	63	57.15
BBT40XER20-100	34	44.45	BBT45XER40-120	63	57.15
BBT40XER20-150	34	44.45	BBT50XER16-70	28	69.85
BBT40XER25-60	42	44.45	BBT50XER16-90	28	69.85
BBT40XER25-70	42	44.45	BBT50XER20-70	34	69.85
BBT40XER25-90	42	44.45	BBT50XER20-90	34	69.85
BBT40XER25-100	42	44.45	BBT50XER20-150	34	69.85
BBT40XER25-150	42	44.45	BBT50XER25-70	42	69.85
BBT40XER32-70	50	44.45	BBT50XER32-70	50	69.85
BBT40XER32-100	50	44.45	BBT50XER32-80	50	69.85
BBT40XER32-150	50	44.45	BBT50XER32-100	50	69.85
BBT40XER40-70	63	44.45	BBT50XER32-120	50	69.85
BBT40XER40-80	63	44.45	BBT50XER40-80	63	69.85
BBT40XER40-150	63	44.45	BBT50XER40-100	63	69.85
BBT40XER50-100	78	44.45	BBT50XER40-120	63	69.85
BBT45XER16-70	28	57.15	BBT50XER50-90	78	69.85
BBT45XER20-70	34	57.15	BBT50XER50-120	78	69.85
