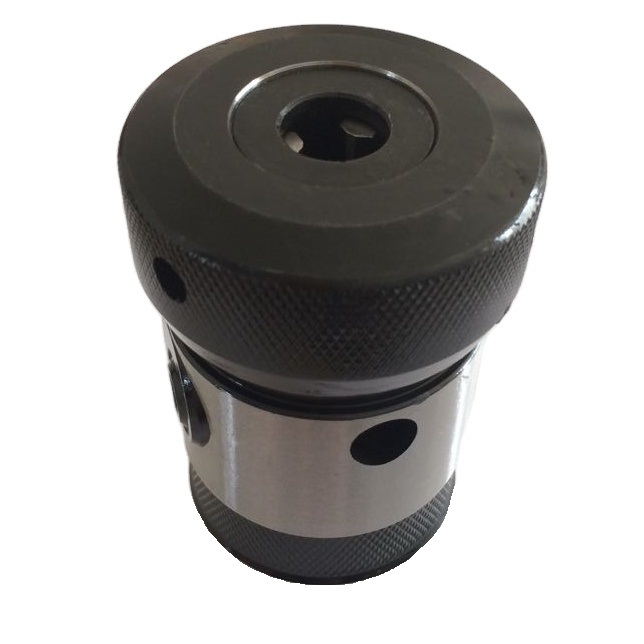

Tap clamping method:
Rotating chuck front sleeve,the clamp claws stretch to the size larger slgightly than tap shank,mounted the tap,then turning the double-head screw,observation through the observation hole,the two eccentric screw of double-head screw clamp the square of tap slightly,then rotata the front sleeve,clamp the tap tightly and clamping more tightly by spanner,finally locking double-headed bolt with hex-spanner to clamp tap square.

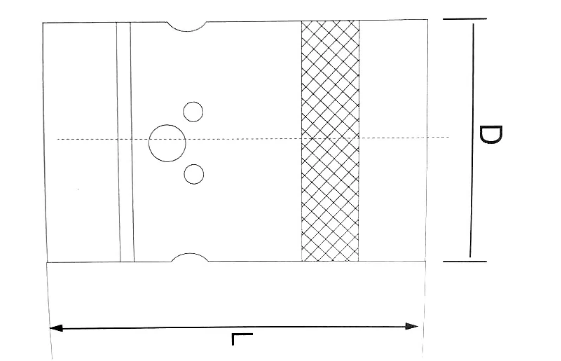

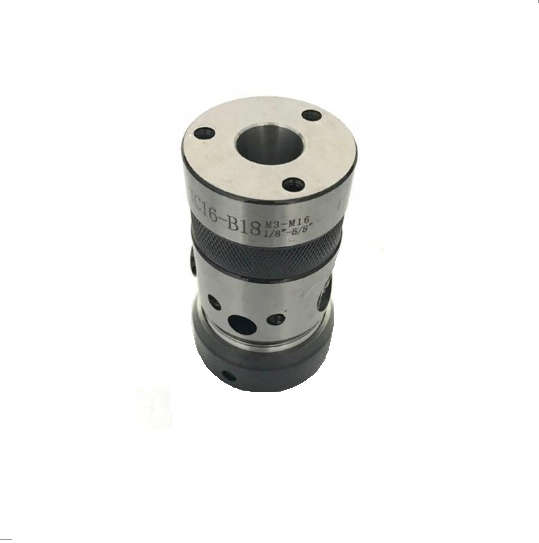

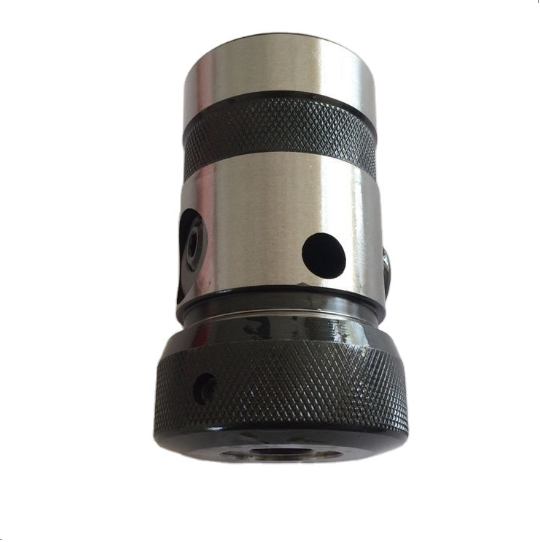

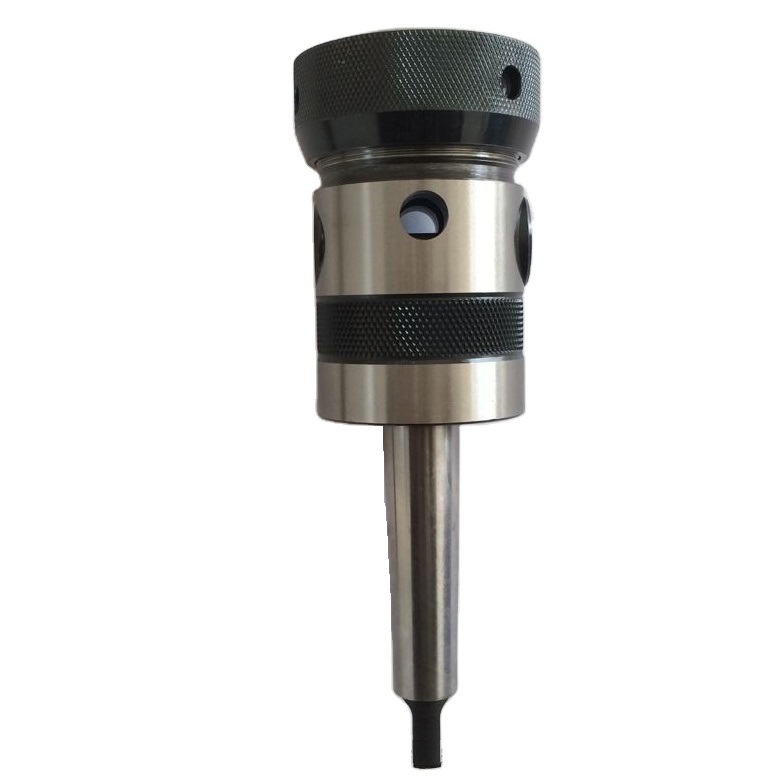

Model no. | Capacity | tap shank dia range | taper | D | L |
TC13-B16 | M2-M13 1/8"-1/2" | Ø2.5-10 | B16 | 48 | 73 |
TC13-JT6 | M2-M13 1/8"-1/2" | Ø2.5-10 | JT6 | 48 | 73 |
TC16-B18 | M3-M16 1/8"-5/8" | Ø3-12.5 | B18 | 54 | 85 |
TC16-JT6 | M3-M16 1/8"-5/8" | Ø3-12.5 | JT6 | 54 | 85 |
TC20-B18 | M5-M20 3/16"-3/4" | Ø4.5-15 | B18 | 54 | 85 |
TC20-JT6 | M5-M20 3/16"-3/4" | Ø4.5-15 | JT6 | 54 | 85 |
TC24-B22 | M12-M24 1/2:-15/16" | Ø8.5-18 | B22 | 60 | 95 |
Model | Capacity | tap shank dia range | taper | D | L |
TC13-MT2 | M2-M13 1/8"-1/2" | Ø2.5-10 | MT2 | 48 | 142 |
TC16-MT2 | M2-M13 1/8"-1/2" | Ø2.5-10 | MT2 | 48 | 155 |
TC16-MT3 | M3-M16 1/8"-5/8" | Ø3-12.5 | MT3 | 54 | 175 |
TC16-MT4 | M3-M16 1/8"-5/8" | Ø3-12.5 | MT4 | 54 | 195 |
TC20-MT3 | M5-M20 3/16"-3/4" | Ø4.5-15 | MT3 | 54 | 175 |
TC20-MT4 | M5-M20 3/16"-3/4" | Ø4.5-15 | MT4 | 54 | 195 |
TC24-MT3 | M12-M24 1/2"-15/16" | Ø8.5-18 | MT3 | 60 | 185 |
TC24-MT4 | M12-M24 1/2"-15/16" | Ø8.5-18 | MT4 | 60 | 205 |

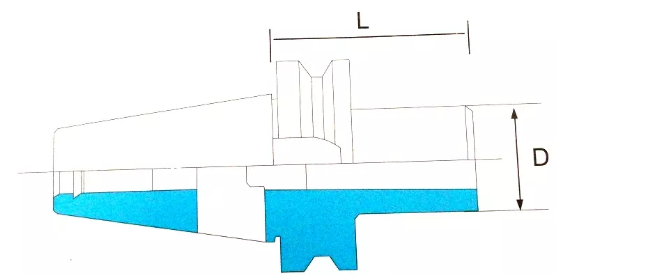

Model | Capacity | Tap shank diameter | Taper | D | L |
TC13-C20 | M2-M13 1/8"-1/2" | Φ2.5-Φ10 | C20 | 48 | 88 |
TC13-BT40 | M2-M13 1/8"-1/2" | Φ2.5-Φ10 | BT40 | 48 | 78 |
TC16-C20 | M3-M16 1/8"-5/8" | Φ3-Φ12.5 | C20 | 54 | 98 |
TC16-BT40 | M3-M16 1/8"-5/8" | Φ3-Φ12.5 | BT40 | 54 | 88 |
TC20-BT40 | M5-M20 3/16"-3/4" | Φ4.5-Φ15 | BT40 | 54 | 88 |
