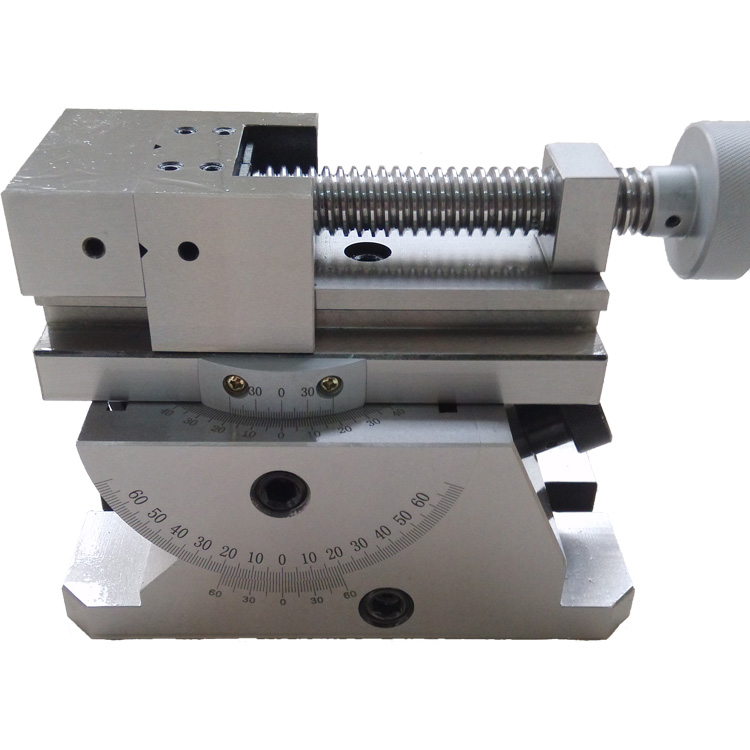

CHM PRECISION UNIVERSAL VISE

The vise is made of two parts:vise body and swivel base. Horizontal swivel goes through 360 ˚,45˚ angle tilts vertically. The accurate graduations and three-way swiveling feature make it greatly suitable for straight, inclined surface or angular surface machining and drilling on grinders and milling machines.
Order No.Jaw Width(mm)Jaw Depth(mm)Max. Opening(mm)Outside Size(mm)
CHM50502570180X72X112
CHM80703080195X110X137
CHM12012040155400X180X210
