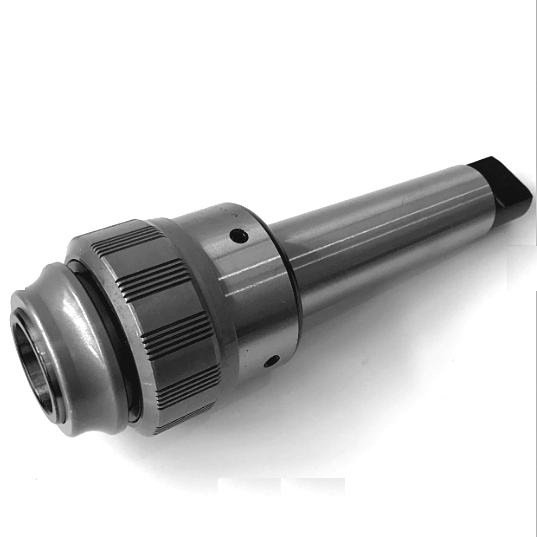

J5230 multi application drilling and tapping chuck set

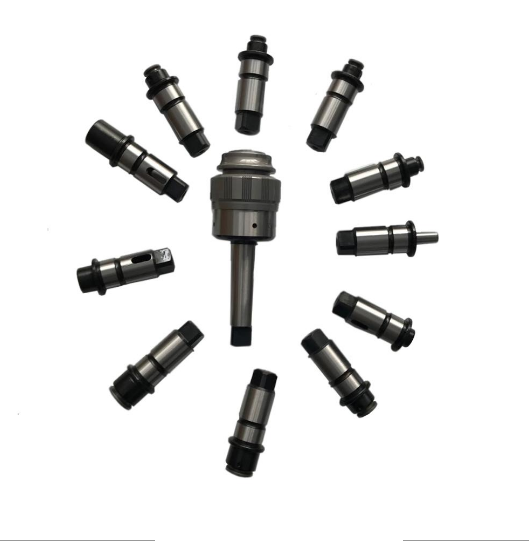

The set includes one chuck and eleven pieces of drill adaptor and tap collet.You can change the drill adaptor and tap collets quickly and safelly just by pushing the nut. It is applicable on lathe ,drilling mache and boring machine for fast and easy changing your tools.


Model  No.

Morse  Shank  of  Chuck

Drill Chuck Adaptor

Tapping   range

Morse  Adaptor

J5230-MS2

MS2

B16

M6-M30

MS1,MS2,MS3

J5230-MS3

MS3

J5230-MS4

MS4

J5230-MS5

MS5

Tap  Range

M6-8

M10

M12

M16

M18-20

M24

M27-30

dxa(mm)

6.3x5

8x6.3

9x7.1

12.5x10

14x11.2

18x14

20x16
