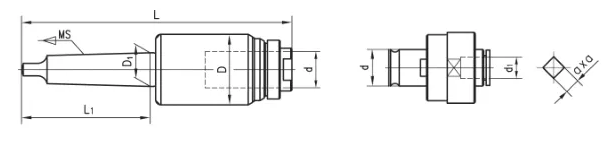

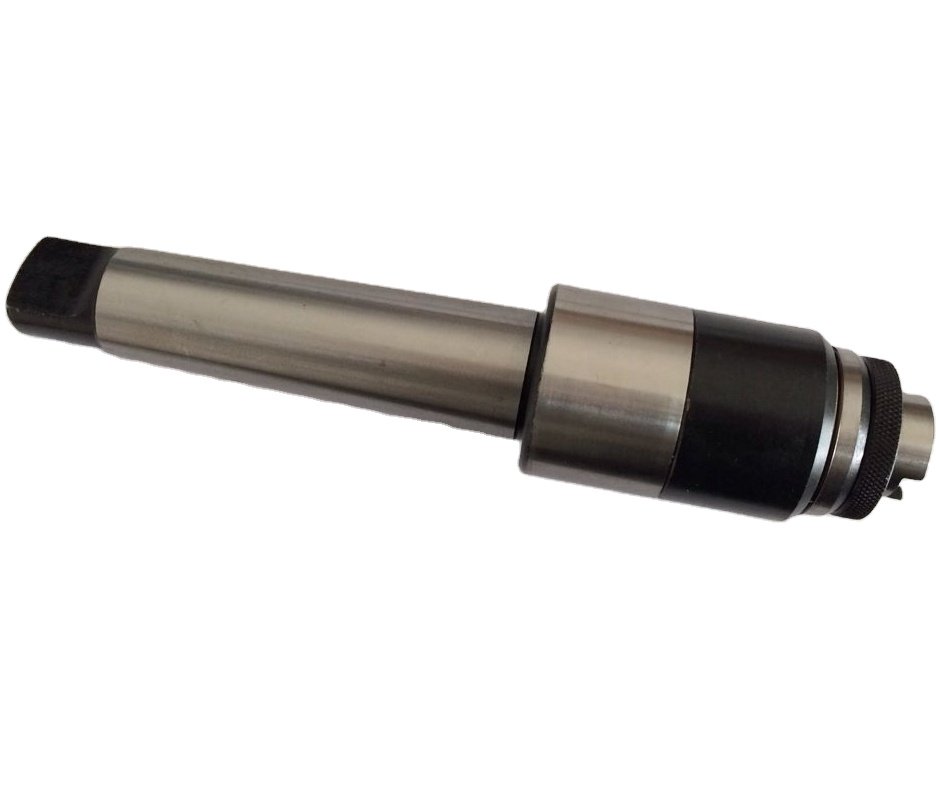

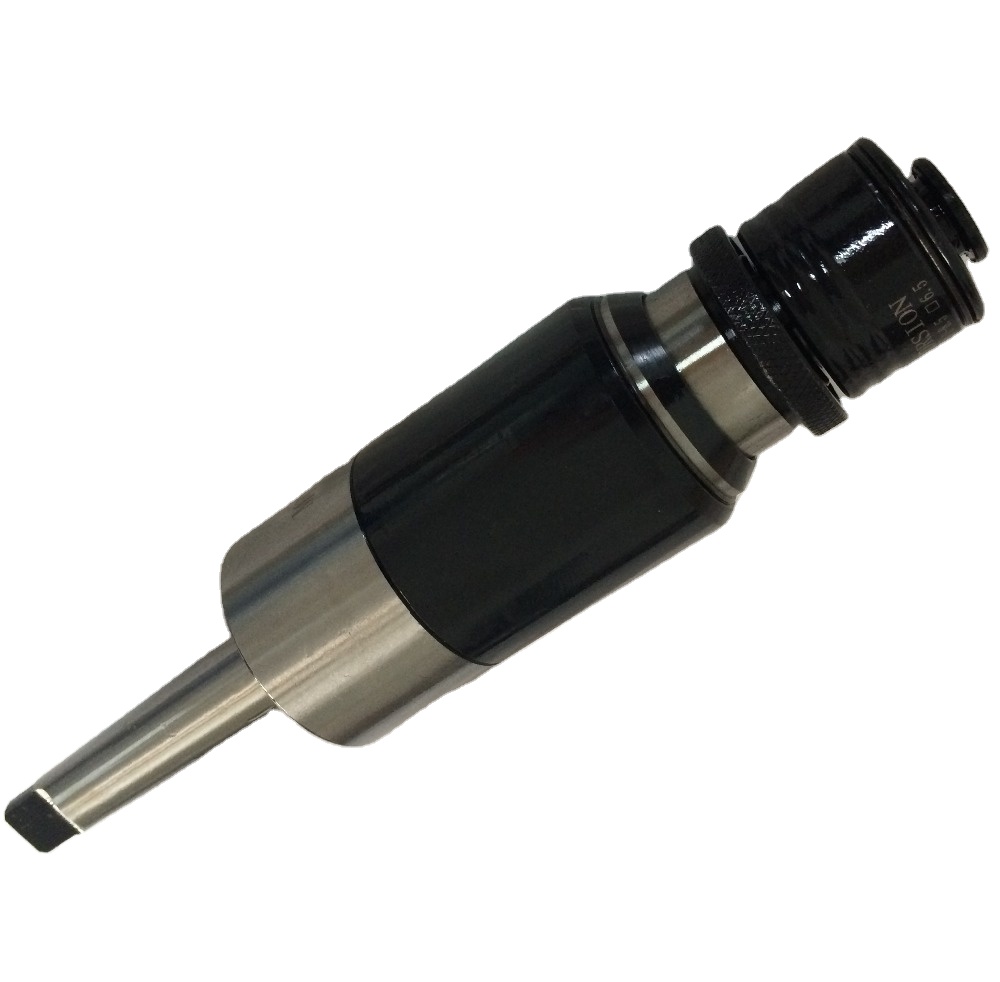

Order No. | Shank Taper | D | D1 | d | L1 | L | Tapping Range | Torque Nm | Wt(kg) |
J4112-MS2 | MS2 | 46 | 17.780 | 19 | 75 | 171.5 | M3-M12 | 25 | 1.08 |
J4112-MS3 | MS3 | 23.825 | 94 | 191 | 1.28 | ||||
J4112-MS4 | MS4 | 31.267 | 117.5 | 216 | 3.00 | ||||
J4116-R8 | R8 | 31.75 | 101.6 | 193.6 | M3-M16 | 46.3 | 1.71 | ||
J4116-MS2 | MS2 | 17.780 | 75 | 171.5 | 1.08 | ||||
J4116-MS3 | MS3 | 23.825 | 94 | 191 | 1.61 | ||||
J4116-MS4 | MS4 | 31.267 | 117.5 | 216 | 3.00 | ||||
J4124-MS3 | MS3 | 66 | 23.825 | 30 | 94 | 227 | M12-M24 | 150 | 3.20 |
J4124-MS4 | MS4 | 31.267 | 117.5 | 252 | 3.60 | ||||
J4124-MS5 | MS5 | 44.399 | 149.5 | 284 | 4.50 |
12 Type Tapping Range | M3 | M4 | M5 | M6 | M8 | M10 | M12 |
67 d1xa(mm) | 4x3 | 4x3 | 5x3.8 | 6x5 | 6x5 | 8x6.3 | 9x7.1 |
83 d1xa(mm) | 2.24x1.8 | 3.15x2.5 | 4x3.15 | 4.5x3.55 | 6.3x5 | 8x6.3 | 9x7.1 |
24 Type Tapping Range | M12 | M14 | M16 | M18 | M20 | M22 | M24 |
67 d1xa(mm) | 9x7.1 | 10.5x8 | 12.5x10 | 14x11 | 16x12 | 18x14.5 | 20x16 |
83 d1xa(mm) | 9x7.1 | 11.2x9 | 12.5x10 | 14x11.2 | 14x11.2 | 16x12.5 | 18x14 |
