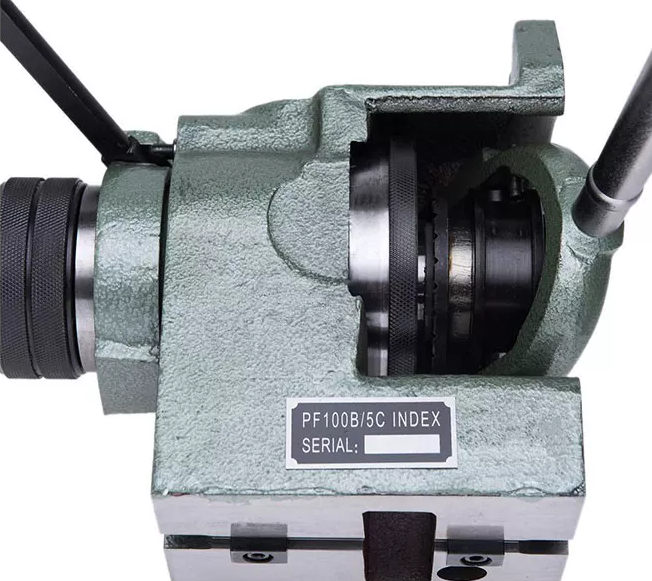

Model No. | PF100B/5C |
Height of centre | 100mm 3-15/16" |
Thread of spindle nose | 2.25"-8 |
Radial run-out of center hole of spindle(measured from spindle nose 25mm/0.98" | 0.02mm 0.0008" |
End surface run out of the spindle's support shoulder | 0.01mm 0.0004" |
Parallelism of centre line of spindle to base surface | 0.02mm 0.0008" |
Dividing accuracy individual spacing error | ±3" |
