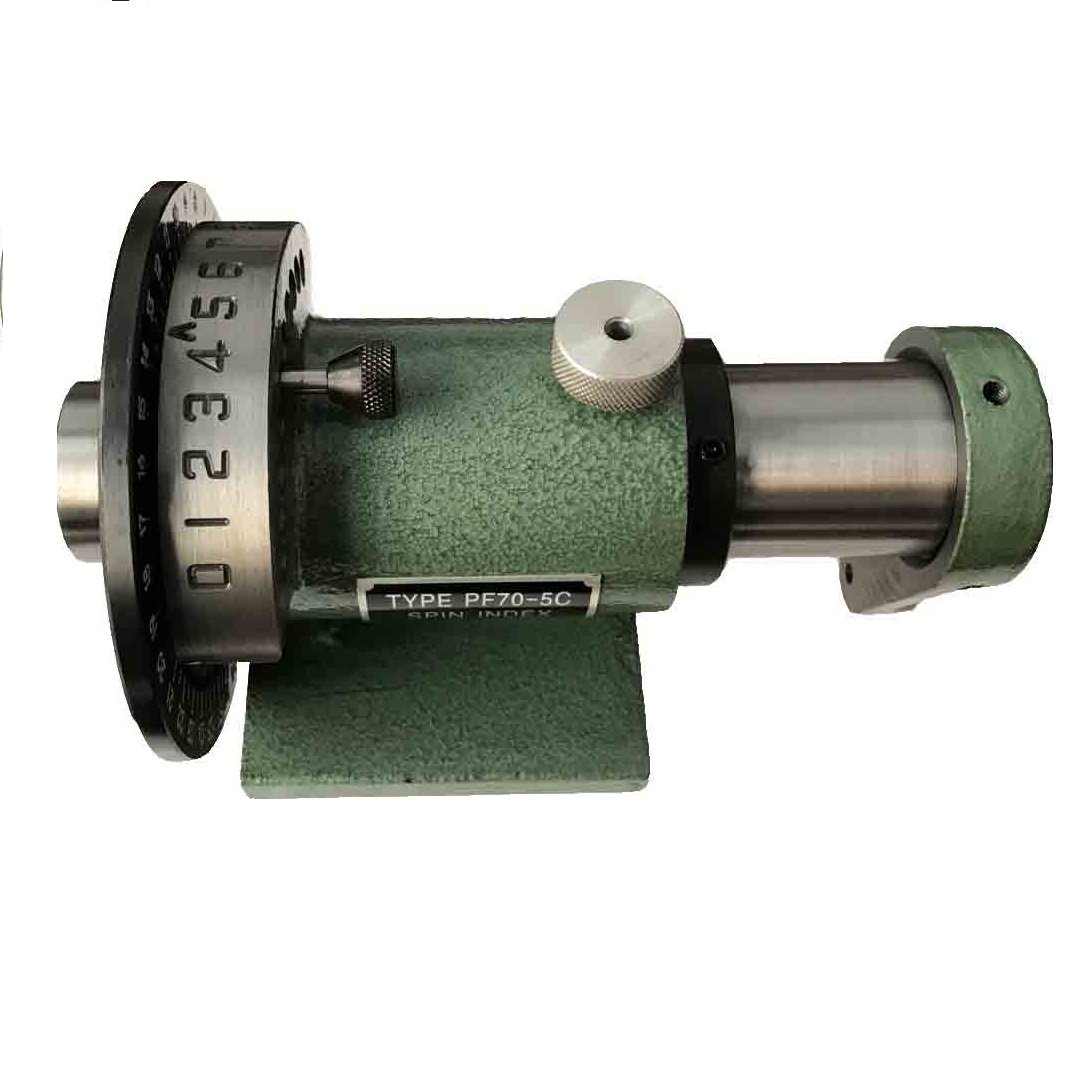

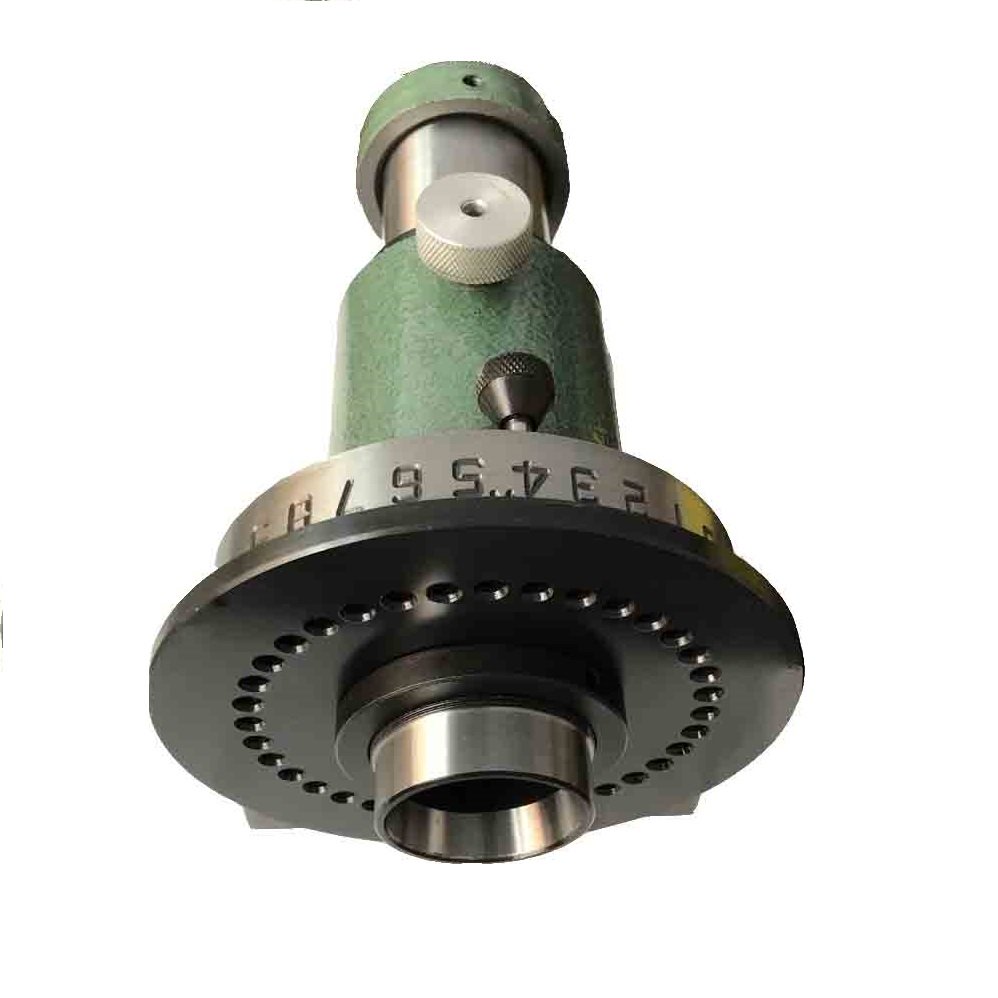

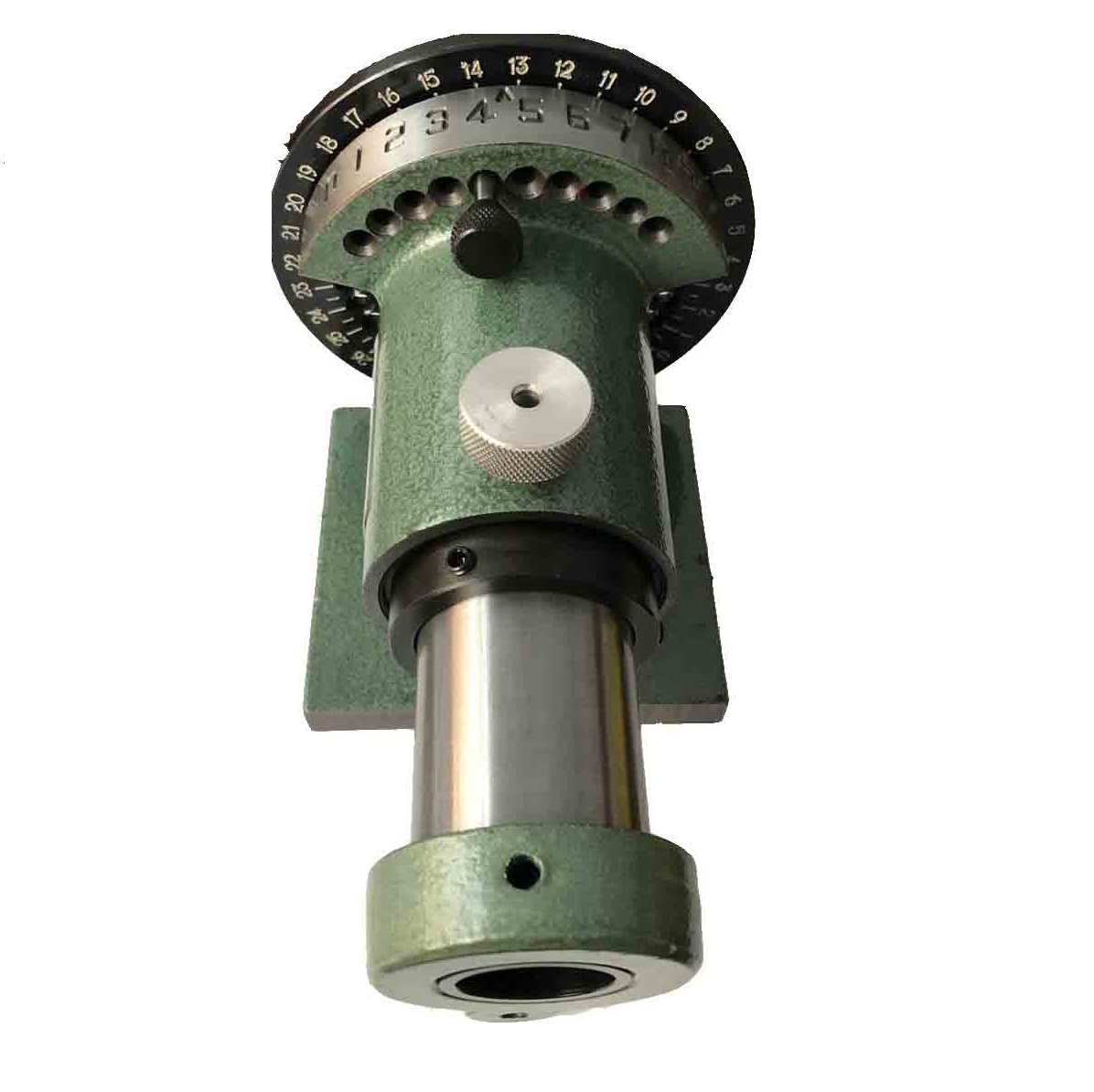

PF70-5C spin index

The index is one of the important accessory units for such machine tools as drill,miller,grinder etc. With the assistance of this unit,the machine tools will be able to accomplish such operatins as index machining of various angular parts and set line drawing of parts etc.
This unit can be used separately or to complete a set with PF70/5C type center(purchased specially)


Model No.

PF70/5C

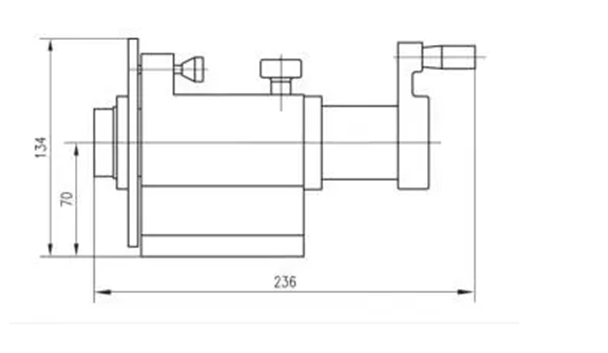

Height of centre

70mm  2-3/4"

Radial run-out of spindle outer taper

0.010mm  0.0004"

Radia oun-out of center hole(measured from spindle nose25mm/0.98")

0.03mm  0.0012"

Parallelism of centre line of spindle to base surface

0.02mm  0.0008"

Individual spacing dividing accuracy

±4'
