MORE THAN 20 YEARS EXPERIENCE AND PROFESSION IN MACHINERY TOOL ACCESSORIES FIELD,

we can supply the most sorts and specifications of tools and accessories such as collects , cnc tool holders , drill chucks ,machine vises , quick change tool post and holders , centers , sleeves ,sharpening machine , cutting tool etc .

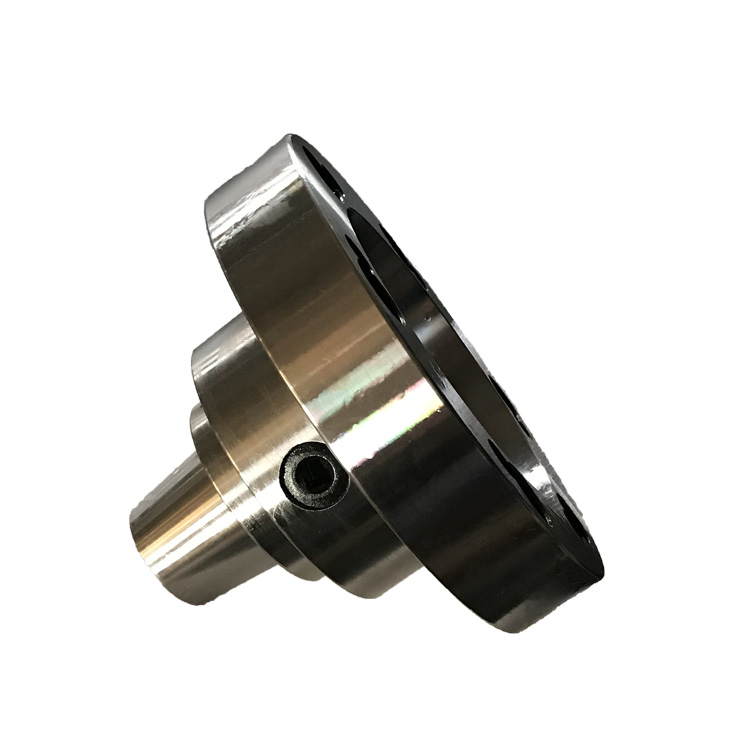

3911-125 5c collet chuck fixture

5C collet is fit for this device,which can clamp tool or workpiece with different diameter and figure. It can be fixed on lathe,grinder and other special equipment, with such feature as high precision, easy operation, safe application,strong clamping etc.

Productproduct

Product Introduce

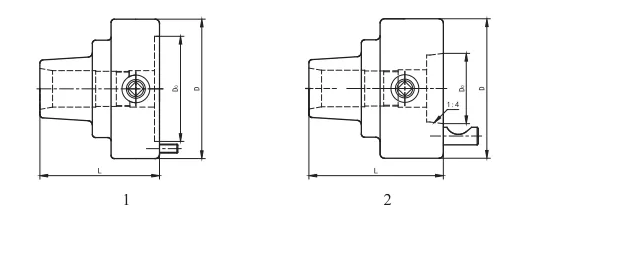

Model No.	D	D0	L	Clamping range			Figure
Model No.	D	D0	L	round hole	square hole	hex hole	Figure
3911-125-5C-00	125	95	107	1-28mm 3/64- 1-1/8"	3-19mm 1/8-3/4"	3-22mm 1/8-7/8"	1

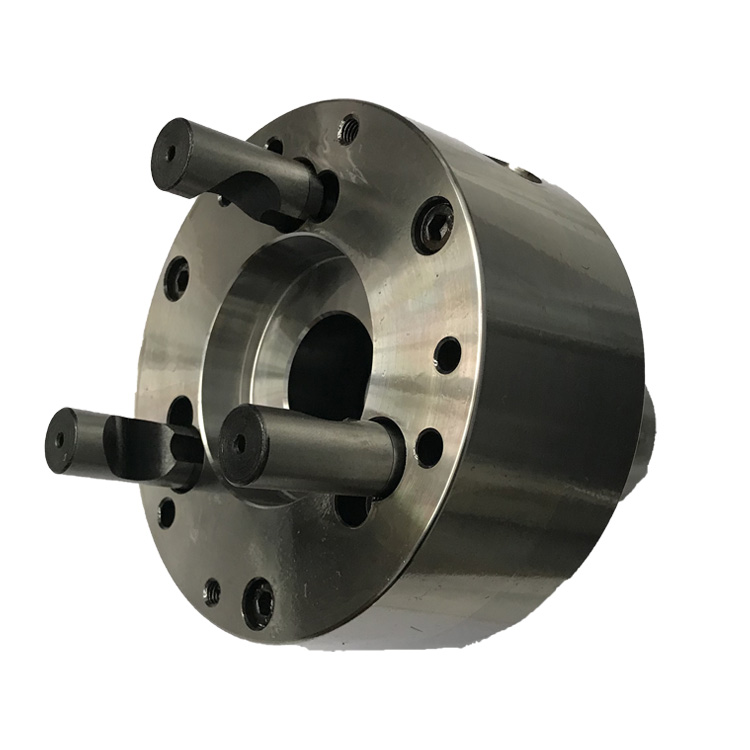

3911-125-5C-D1-3	125	53.975	120.5				2
3911-125-5C-D1-4	125	63.513	120.5
3911-140-5C-D1-5	140	82.563	143.5
3911-165-5C-D1-6	165	106.375	143.5
3911-210-5C-D1-8	210	139.719	145.5

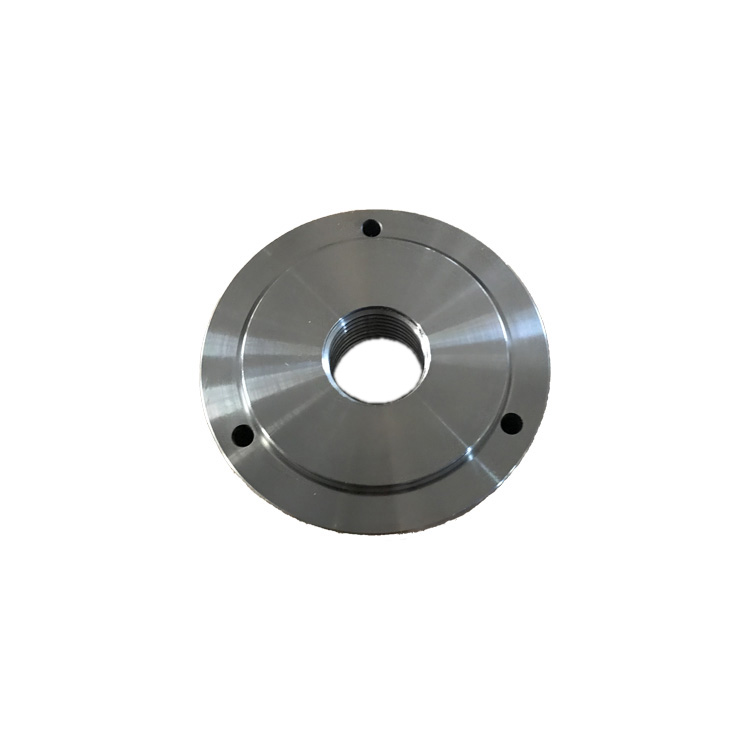

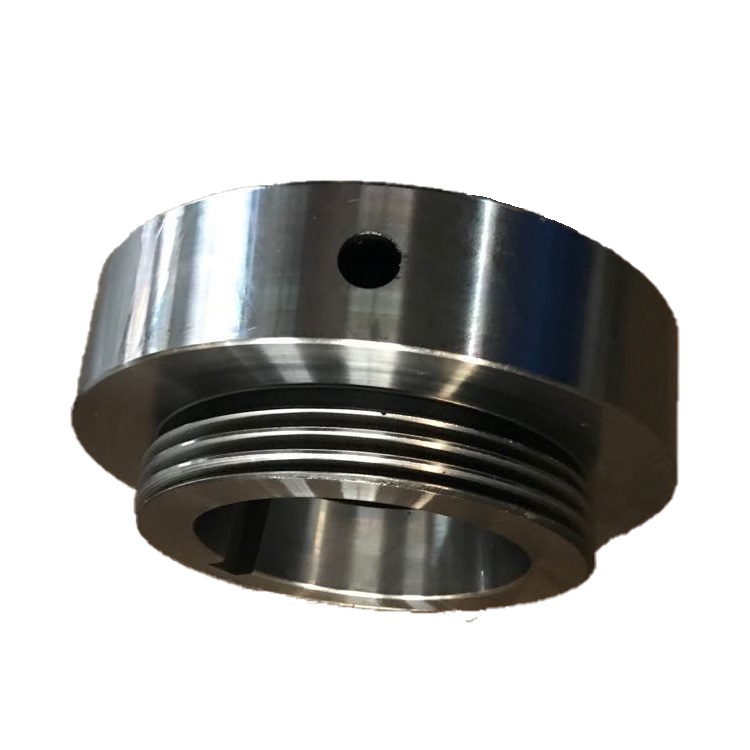

Connecting plate thread:1"-8un,1"-10un,1-1/2-8un,1-3/4-8un,

2-1/4-8un,2-3/4-8un,D1-3/125,D1-4/125,D1-5/125.
