lathe tool holder and sleeve

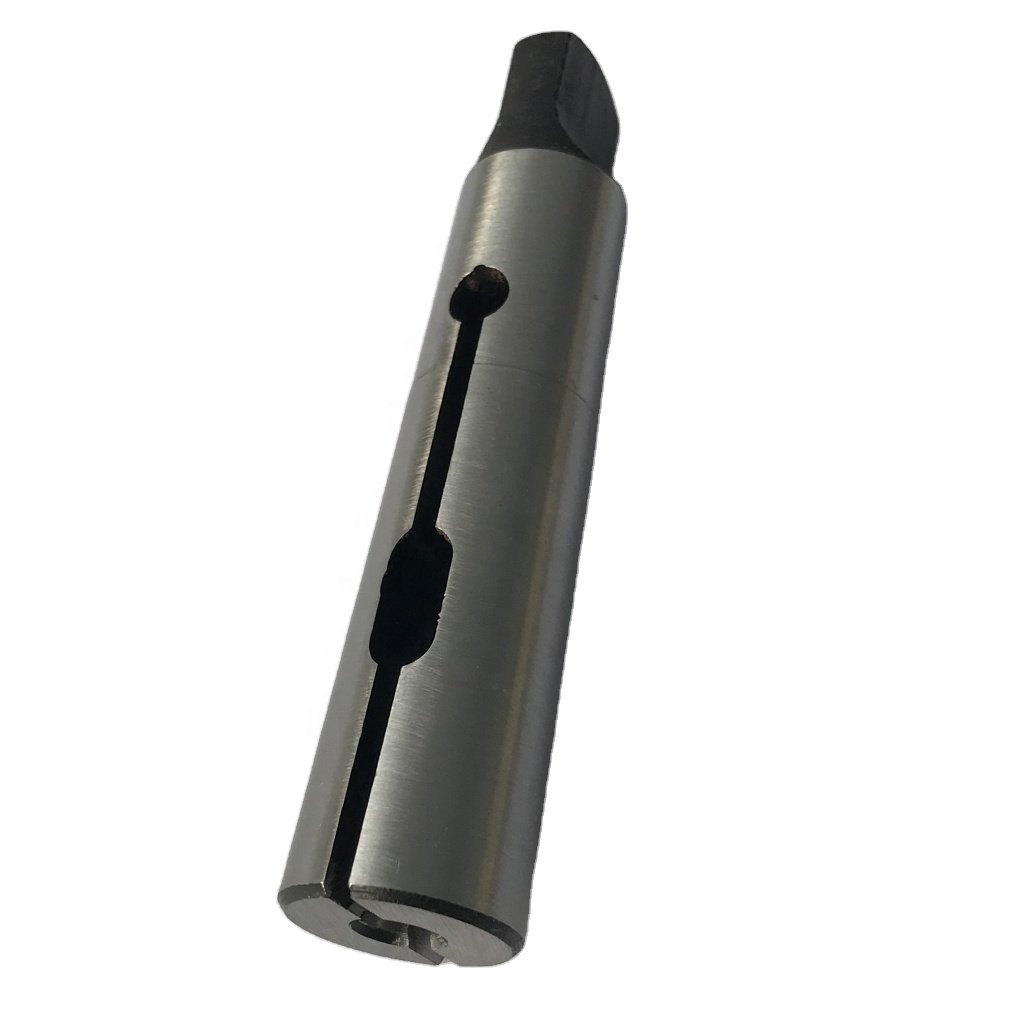

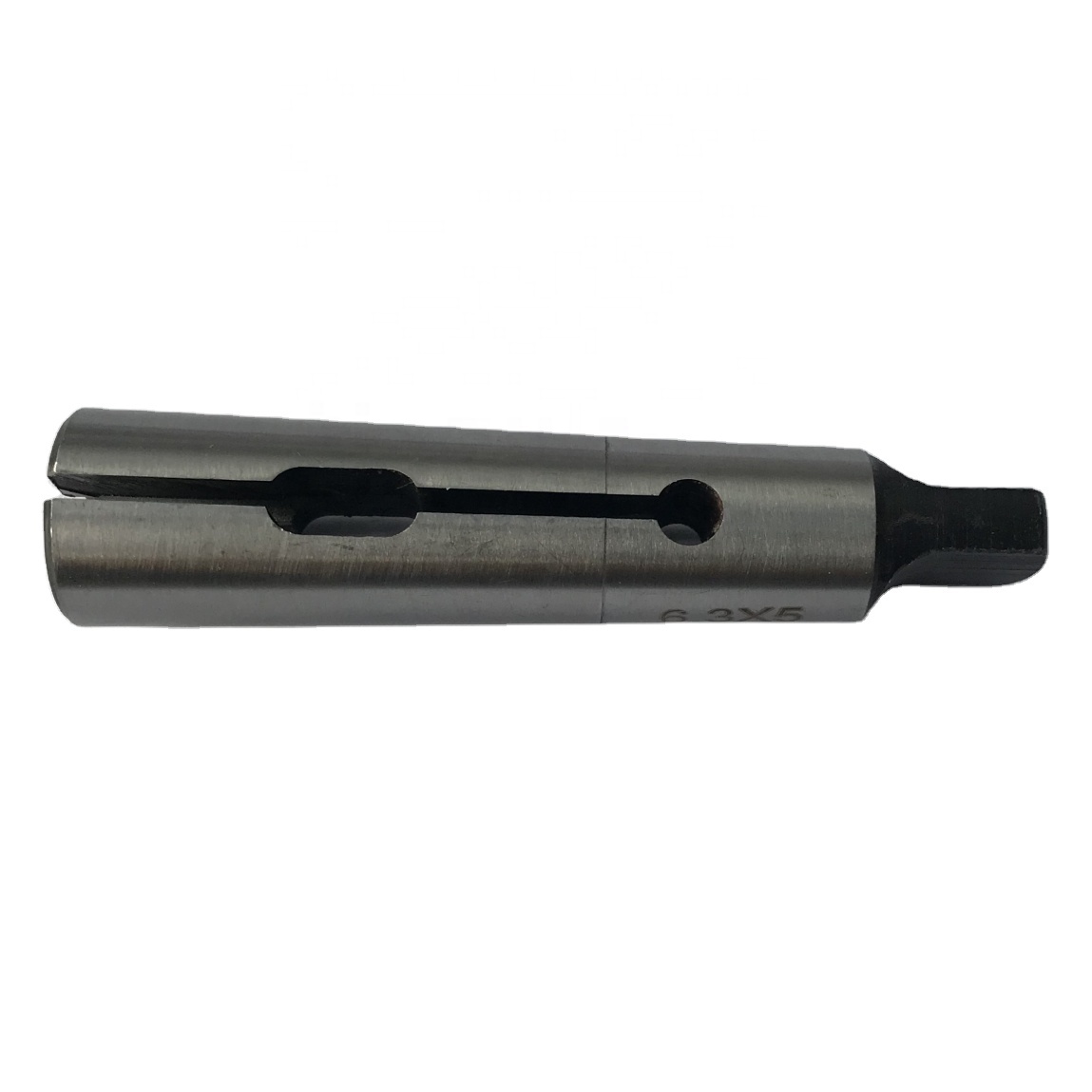

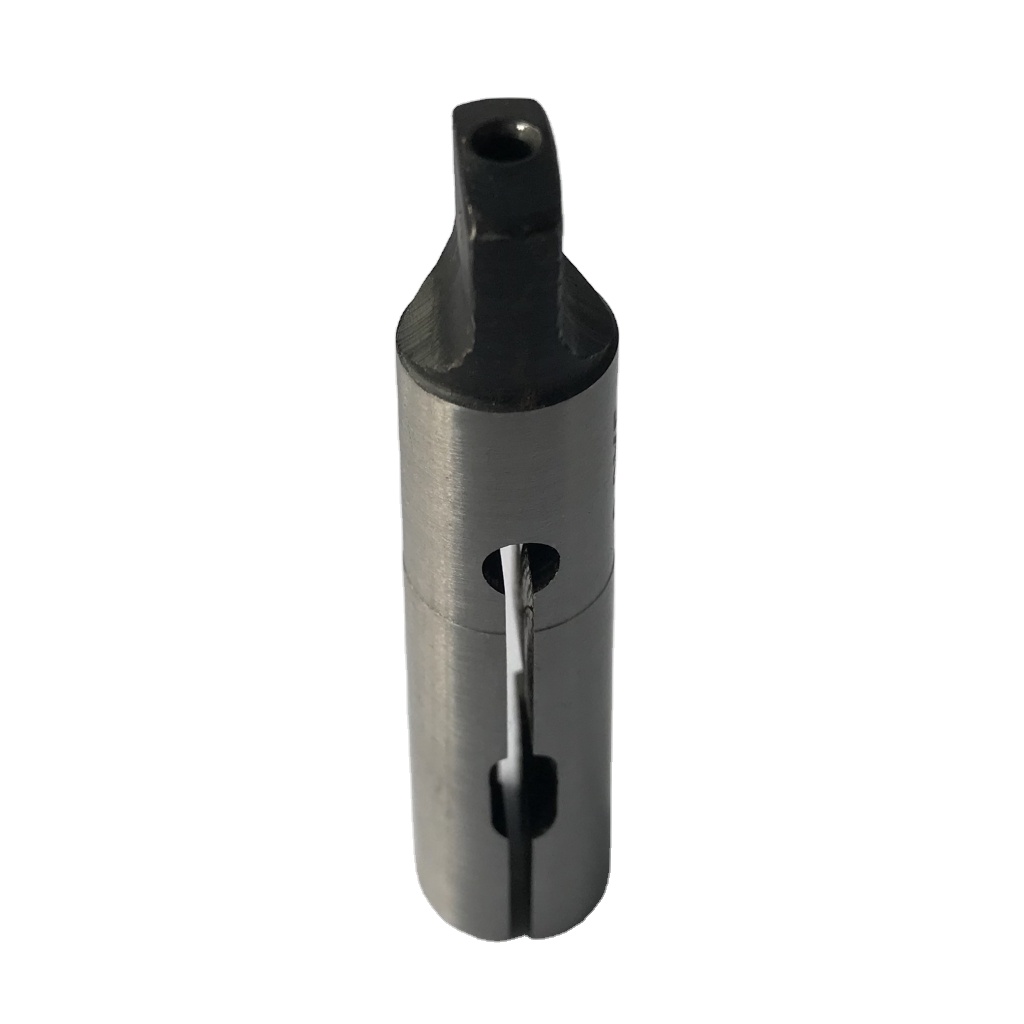

morse taper tapping sleeve

1,Material: medium carbon steel
2,HRC: 43-45
3.clamping tap

Product Introduce

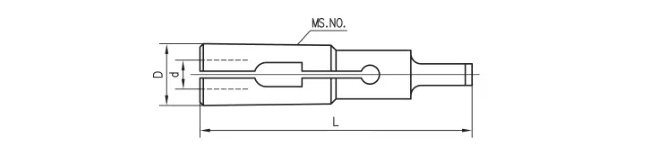

Model No.	MS.No.	d(mm)	D(mm)	L(mm)
TG0-d	MS0	2.47-4.53	9.2	59.5
TG1-d	MS1	2.5-8	12.31	67
TG2-d	MS2	5.95-12	18.06	80
TG3-d	MS3	12.5-18	24.15	80
TG4-d	MS4	16-24	31.66	90
TG5-d	MS5	22-34	44.73	156
TG6-d	MS6	34-38	63.76	217.5
