lathe tool holder and sleeve

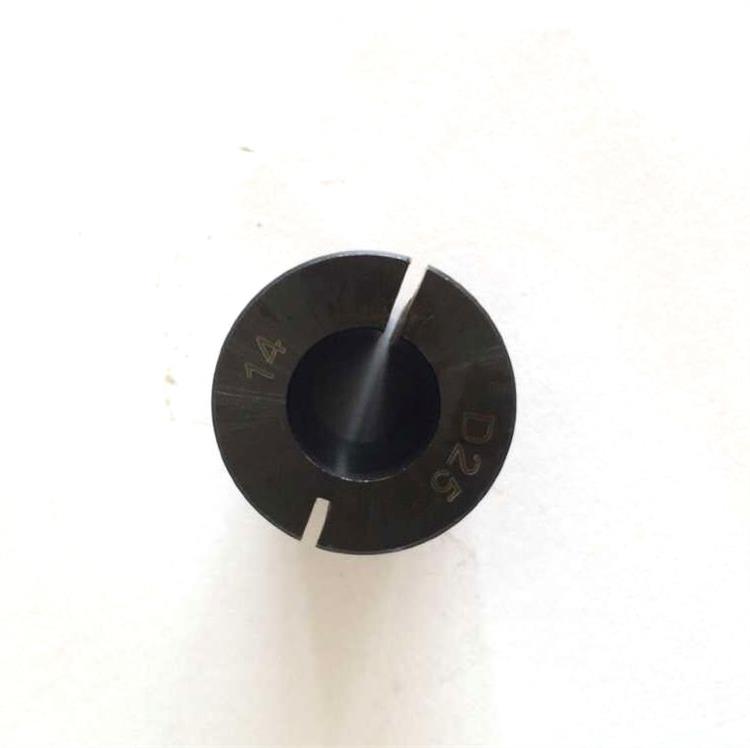

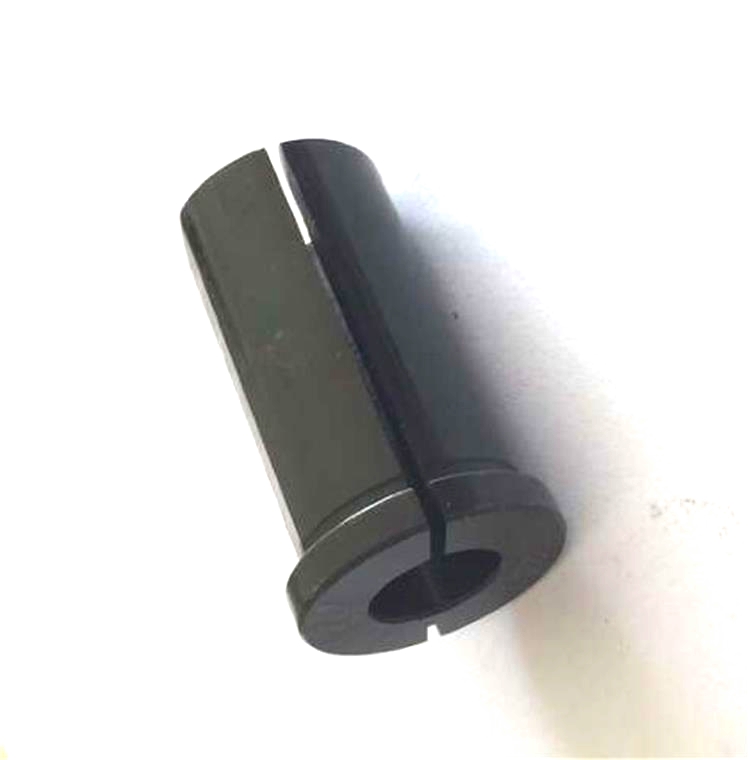

Anti-vibration boring bar sleeve

1,Material: medium carbon steel
2,HRC: 43-45
3.reduction sleeves for lathe cutter,boring bar holders etc

Productproduct

Product Introduce

Code No.	Extemal Dia D1	Clamping Length L	Intermal Dia d
D16	16	35	4/5/6/7/8/9/10/12
D20	20	45	4/5/6/7/8/910/12/16
D25	25	45	6/7/8/9/10/12/14/16/18/20
D32	32	55	6/7/8/9/10/12/14/16/18/20/25
D40	40	70	6/7/8/9/10/12/14/16/18/20/25/32
D50	50	90	8/10/12/16/20/25/32/40
D60	60	75	8/10/12/16/20/25/32/40/50
