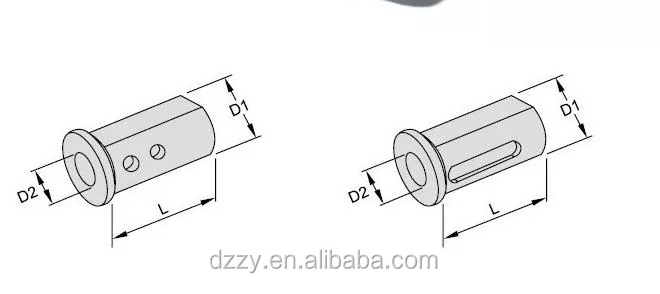

Code No. | Extemal Dia D1 | Clamping Length L | Front End Length | Total Length | Intermal Dia D2 |
D16 | 16 | 35 | 5 | 40 | 4/5/6/7/8/9/10/12 |
D20 | 20 | 45 | 5 | 50 | 4/5/6/7/8/910/12/16 |
D25 | 25 | 45 | 5 | 50 | 6/7/8/9/10/12/14/16/18/20 |
D32 | 32 | 55 | 5 | 60 | 6/7/8/9/10/12/14/16/18/20/25 |
D40 | 40 | 70 | 5 | 75 | 6/7/8/9/10/12/14/16/18/20/25/32 |
D50 | 50 | 90 | 5 | 95 | 8/10/12/16/20/25/32/40 |
