MORE THAN 20 YEARS EXPERIENCE AND PROFESSION IN MACHINERY TOOL ACCESSORIES FIELD,

we can supply the most sorts and specifications of tools and accessories such as collects , cnc tool holders , drill chucks ,machine vises , quick change tool post and holders , centers , sleeves ,sharpening machine , cutting tool etc .

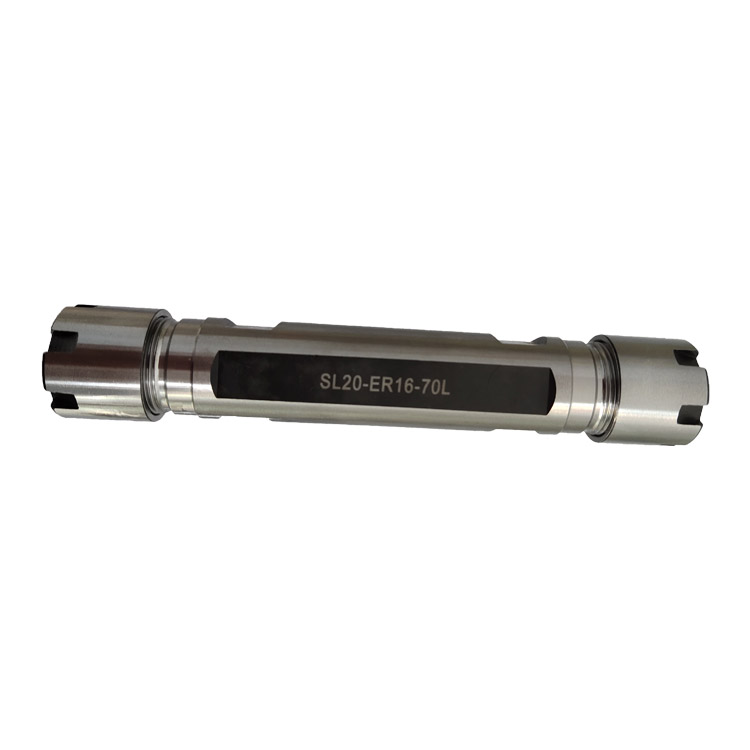

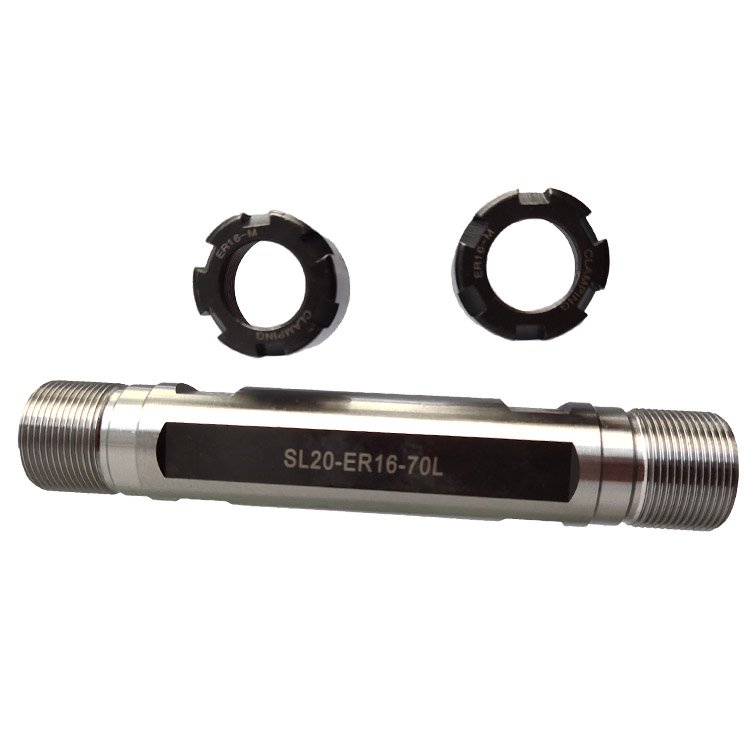

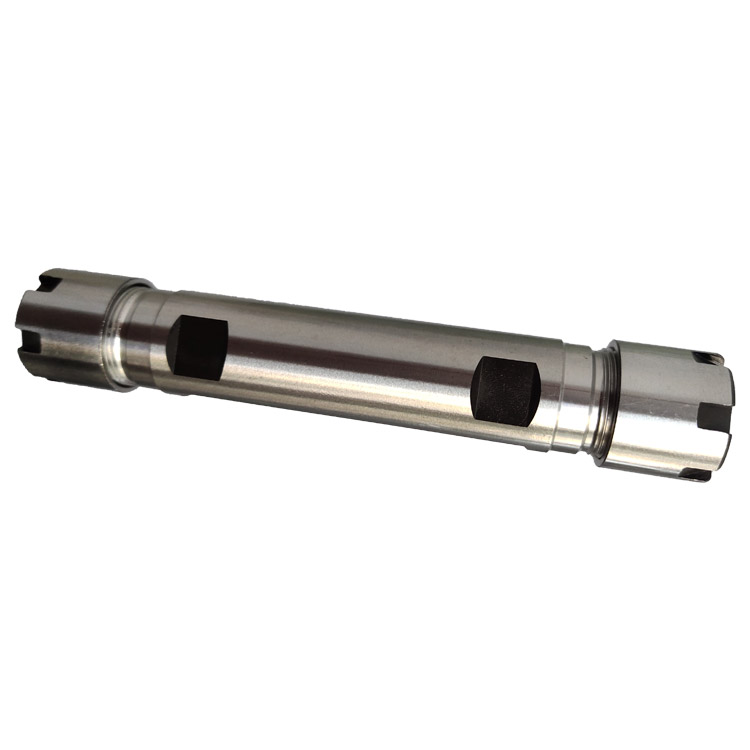

double-ended two side straight shank collet chuck

it can clamp tools at two side,by which processing can take place at two side at same time. Production efficiency is increased.
runout:0.005mm
hardness:HRC50-53
material:high quality alloy steel

Productproduct

Product Introduce

model	Fig	D	L	L1	D1	D2	C1	C2
SL16-ER11M-40	1	16	40	72	1-7	1-7	19	19
SL19.05-ER11M-40	2	19.05	40	72	1-7	1-7	19	19
SL19.05-ER11M-50	2	19.05	50	82	1-7	1-7	19	19
SL19.05-ER11M-60	2	19.05	60	90	1-7	1-7	19	19
SL19.05-ER11M-90	2	19.05	90	122	1-7	1-7	19	19
SL19.05-ER11M-100	2	19.05	100	132	1-7	1-7	19	19
SL20-ER11M-50	2	20	50	80	1-7	1-7	19	19
SL20-ER11M-60	2	20	60	92	1-7	1-7	19	19
SL19.05-ER16M-60	1	19.05	60	112	1-10	1-10	22	22
SL19.05-ER16M-75	1	19.05	75	127	1-10	1-10	22	22
SL20-ER16M-40	1	20	40	90	1-10	1-10	22	22
SL20-ER16M-60	1	20	60	112	1-10	1-10	22	22
SL20-ER16M-75	1	20	75	127	1-10	1-10	22	22
SL20-ER16M-100	1	20	100	152	1-10	1-10	22	22
SL22-ER16M-60	1	22	60	112	1-10	1-10	22	22
SL22-ER16M-75	1	22	75	127	1-10	1-10	22	22
SL22-ER16M-90	1	22	90	142	1-10	1-10	22	22
SL22-ER16M-100	1	22	100	152	1-10	1-10	22	22
SL25-ER16M-50	2	25	50	102	1-10	1-10	22	22
SL25-ER16M-60	2	25	60	112	1-10	1-10	22	22
SL25-ER16M-70	2	25	70	122	1-10	1-10	22	22
SL25.4-ER16M-60	2	25.4	60	112	1-10	1-10	22	22
SL25.4-ER16M-70	2	25.4	70	122	1-10	1-10	22	22
SL25.4-ER16M-75	2	25.4	75	127	1-10	1-10	22	22
SL25-ER20M-80	1	25	80	134	1-13	1-13	28	28
SL25.4-ER20M-80	1	25.4	80	134	1-13	1-13	28	28
SL32-ER20M-60	2	32	60	114	1-13	1-13	28	28
SL32-ER20M-80	2	32	80	134	1-13	1-13	28	28
SL19.05-ER11M/ER16M-50	3	19.05	50	92	1-7	1-10	16	22
SL20-ER11M/ER16M-50	3	20	50	92	1-7	1-10	16	22
SL19.05-ER11M/ER20M-50	3	19.05	50	120	1-7	1-13	16	28
SL20-ER11M/ER20M-50	3	20	50	120	1-7	1-13	16	28
SL22-ER16M/ER20M-45	3	22	45	98	1-10	1-13	22	28
SL22-ER16M/ER20M-60	3	22	60	113	1-10	1-13	22	28
SL25-ER16M/ER20M-45	3	25	45	98	1-10	1-13	22	28
SL25-ER16M/ER20M-60	3	25	60	113	1-10	1-13	22	28
SL25-ER16M/ER25M-45	3	25	45	115	1-10	1-16	22	35
SL25-ER16M/ER25M-60	3	25	60	130	1-10	1-16	22	35
